ATM450S Series

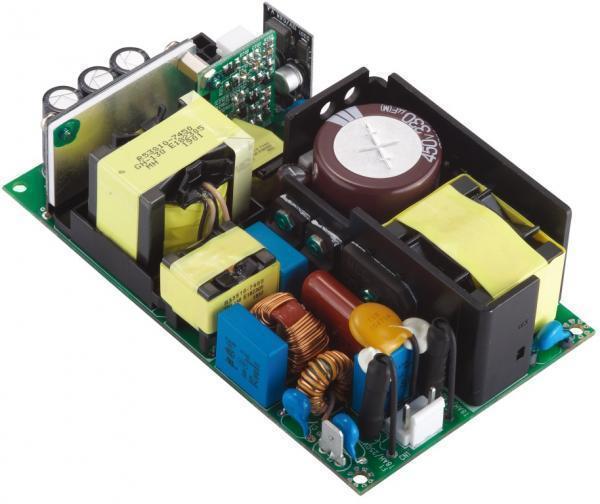

ATM450S Series image
Manufacturer Adaptertech logotype
Power 260.00 W
Package Open frame
No. of outputs 1
Application Medical
Input voltage 100-240VAC
Efficiency 0.00
Available output range (V) 0-500
Max output current 0.00
Electronic load input rating power 0.00
Warranty 2 Years
Dimensions 127x87x50mm
Weight 0.66
Water-cooled option No

Features:

  • IEC/EN/ANSI/AAMI ES60601-1 (Edition 3.2)
  • EMC: IEC60601-1-2 (Edition 4.1)
  • Means of Protection: 2 X MOPP
  • Touch Current: < 100uA
  • IEC/EN/UL 62368-1
  • 100-240Vac Universal Input
  • 450W with Fan
  • Standby 5V/1A
  • On/Off Remote Control
  • With 12V/0.6A Output for Fan
  • Regulated Output with Low Ripple Noise
  • Modified and Custom Design Available
  • 2 Years Warranty

Download datasheet
