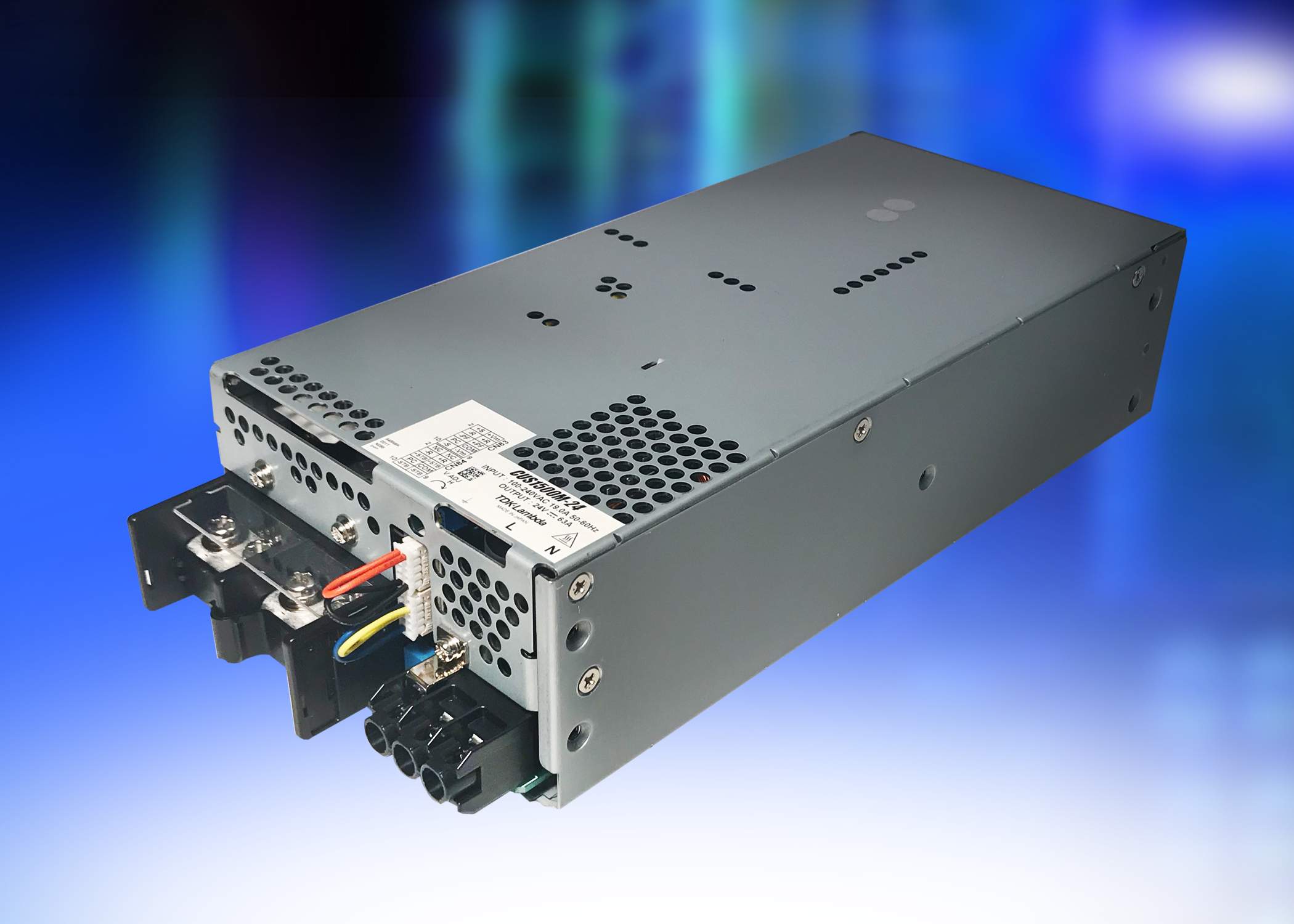

CUS1500M

CUS1500M image
Manufacturer TDK-Lambda logotype
Power 1500.00 W
Package Enclosed
No. of outputs 1
Input voltage 85-265Vac
Efficiency 0.00
Max output current 0.00
Electronic load input rating power 0.00
Warranty 7 years
Dimensions 261 x 127 x 63
Weight 3
Water-cooled option No

Features:

  • Low Audible Noise Fan (<45dBA)
  • Medical Certification (2 x MoPP)
  • Class B Conducted and Radiated EMI
  • Compact 127 x 63 x 261mm (5 x 2.48 x 10.28”) Package
  • Seven Year Warranty

Description:

The CUS1500M are 1500W rated AC-DC power supplies with output voltages from 12V to 48V. They are certified to IEC60601-1 3rd edition (medical) and IEC62368-1 with compliance to the EN60601-1-2:2015 Edition 4 immunity requirements. The series is also certified to EN62477-1 (OVC III). These 7-year warranty products feature low acoustic noise (<45dBA) and meet both class B radiated and conduction EMI standards. Features include an isolated 5V 1A standby voltage, remote on/off and an output-low/fan-fail isolated signal. Up to five units can be connected in parallel for additional power.
Download datasheet
