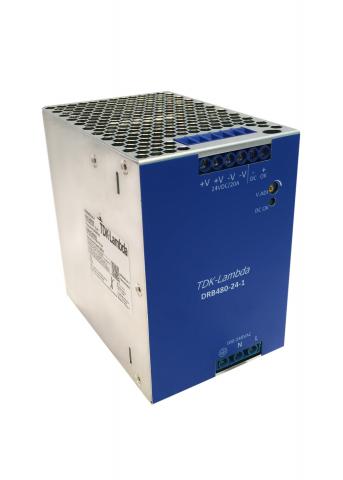

DRB480-24-1
| Manufacturer |
|
| Power | 480.00 W |
| Package | DIN-rail |
| No. of outputs | 1 |
| Application | Standard |
| Input voltage | 90-264Vac |
| Efficiency | 0.00 |
| Available output range (V) | 24 |
| Output current (A) | 20 |
| Max output current | 0.00 |
| Input type | AC input |
| Electronic load input rating power | 0.00 |
| Warranty | 3 years |
| Dimensions | 84 x 125 x 124 mm |
| Weight | 1 |
| Water-cooled option | No |
Features:
|
Description:
The DRB series of DIN rail power supplies offers basic functionality with IEC/EN/UL 60950-1 and UL 508 certifications for power applications up to 480W . Supporting the growing trend for simple and economic DIN power solutions in industrial and process control applications, the series combines low cost and extremely compact dimensions with efficiencies of up to 92%. |
