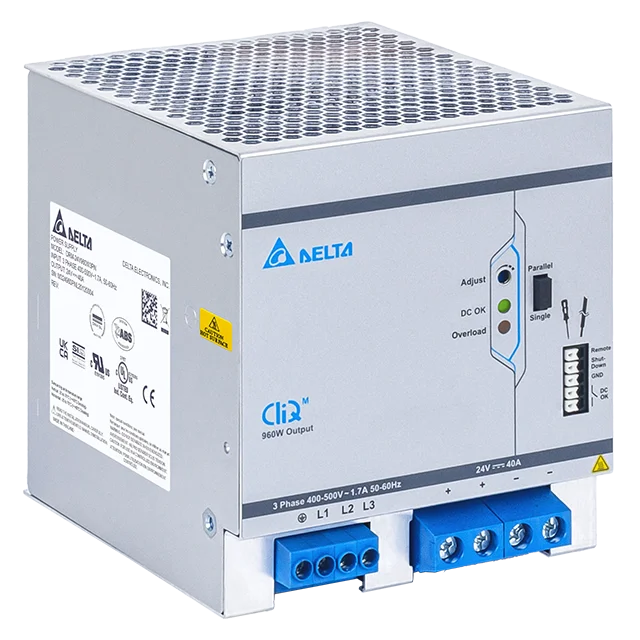

DRM-24V960W3PN

Features:

• Built-in constant current circuit for charging application
• Full power from -25°C to +60°C @ 5,000 m (16,400 ft.)
• Power Boost of 150% up to 7 seconds
• Advanced Power Boost (APB) – protect system and ensure continuing operation when large inrush current detected due to faulty load on a multiple load connection
• DNV GL and ABS approvals for maritime applications
• Built-in DC OK Contact and LED indicator for DC OK/ Overload
• Conformal coating on PCBAs to protect against common dust and chemical pollutants

Description:

Delta Electronics is introducing one of the slimmest DIN rail industrial power supplies in its class, the CliQ M DIN rail power supply series. To fulfill the demands in maritime applications, the product is designed according to major industrial and maritime (Lloyd’s Register) safety standards. Other features include compliance with harmonic current IEC/EN 61000-3-2, class A, built-in DC OK contacts, and an LED for indicating DC OK and Overload conditions. In addition to having Power Boost of 150% up to 7 seconds, the CliQ M series is the first in the CliQ family to feature Advanced Power Boost (APB). With multiple loads connected in a system, a large inrush current could be drawn (demanded) due to one fault load. This will be detected by APB. The APB will trip the circuit breaker (circuit breaker with appropriate rating based on the system load) on the current path of the fault load due to high currrent. This thus prevents the system from shutting down while the other connected current paths continue to operate without interruption.
