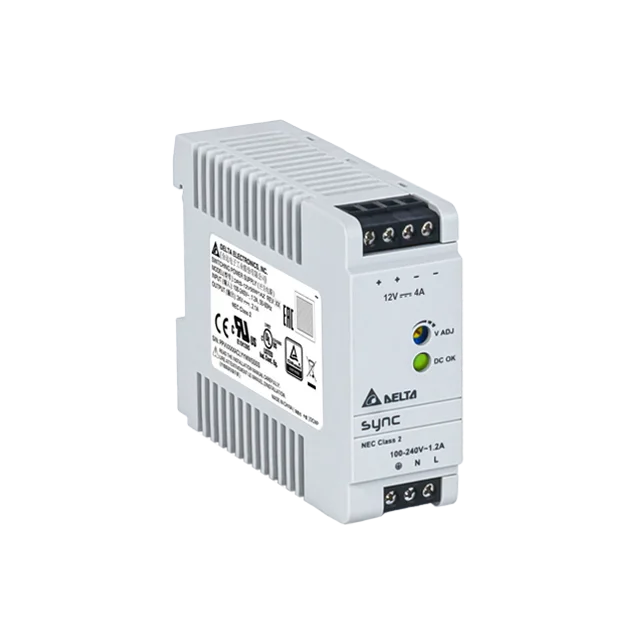

DRS-12V50W1N Series

Features:

• Ultra-compact size and galvanic isolation up to 3.0 KVac
• Universal AC input voltage range and full power from -10°C to +55°C operation
• Up to 89.0% efficiency
• Low earth leakage current < 0.5 mA @ 264 Vac
• Built-in DC OK relay contact option available
• Extreme low temperature cold start at -40°C
• NEC Class 2 / Limited Power Source (LPS) certified
• Certified according to IEC/EN/UL 62368-1

Description:

The ultra-compact and competitively priced Delta Sync DIN Rail DRS-12V50W1N☐ power supply is designed for industrial applications requiring highly reliable power supply that must fit in a small space. The Sync series operates with universal AC input range and offers full power up to 55°C. The output is adjustable from 12-15 volts, and can support up to 3000 microfarads of load capacitance. A green LED indicates output is present. The design is certified according to IEC/UL 60950-1, IEC/EN/UL 62368-1 Information Technology Equipment (ITE) and UL 508 Industrial Control Equipment (ICE). The series is also fully compliant with RoHS Directive (EU) 2015/863 for environmental protection. NEC Class 2 and Limited Power Source (LPS) approvals are available for this product.
