DRS-24V30W1AZ

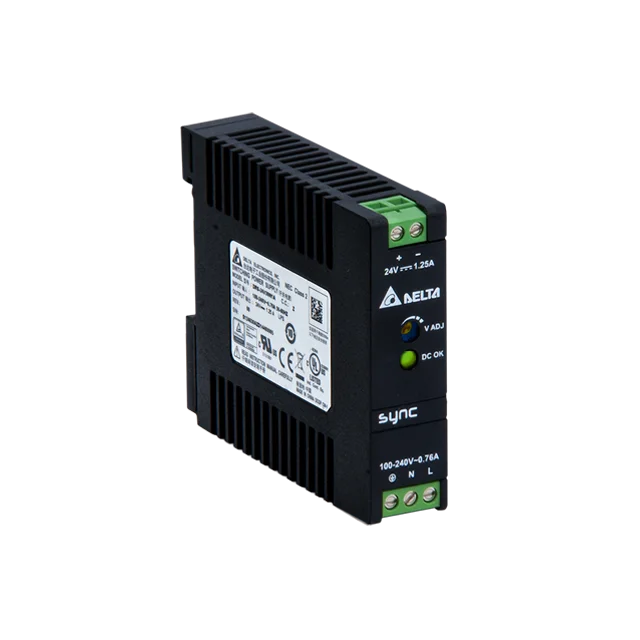

DRS-24V30W1AZ image
Manufacturer Delta logotype
Power 30.00 W
Package DIN-rail
Input voltage 85-264VAC
Efficiency 0.00
Available output range (V) 24V
Max output current 0.00
Electronic load input rating power 0.00
Dimensions 75x21x89.5mm
Weight 0.10
Water-cooled option No

Features:

  • Ultra compact size and galvanic isolation up to 3.0 KVac between input to output
  • Universal AC input voltage and full power from -10°C to +55°C operation
  • Up to 88.0% efficiency
  • Low earth leakage current < 0.5 mA @ 240 Vac
  • NEC Class 2 / Limited Power Source (LPS) certified
  • Overvoltage / Overcurrent / Over Temperature Protections
  • Meet Surge Immunity IEC 61000-4-5, Level 4 (CM: 4 kV, DM: 2 kV)

Description:

The ultra-compact and competitively priced Delta Sync DIN rail power supply series is designed for industrial applications requiring highly reliable power supply within a tight space. The Sync series operates with universal AC input range and offers full power up to 55°C. All models in the series are certified according to IEC/EN/UL 60950-1 Information Technology Equipment (ITE) and UL 508 Industrial Control Equipment (ICE). The series is also fully compliant with RoHS Directive 2011/65/EU for environmental protection. NEC Class 2 and Limited Power Source (LPS) approvals are available for this product.
