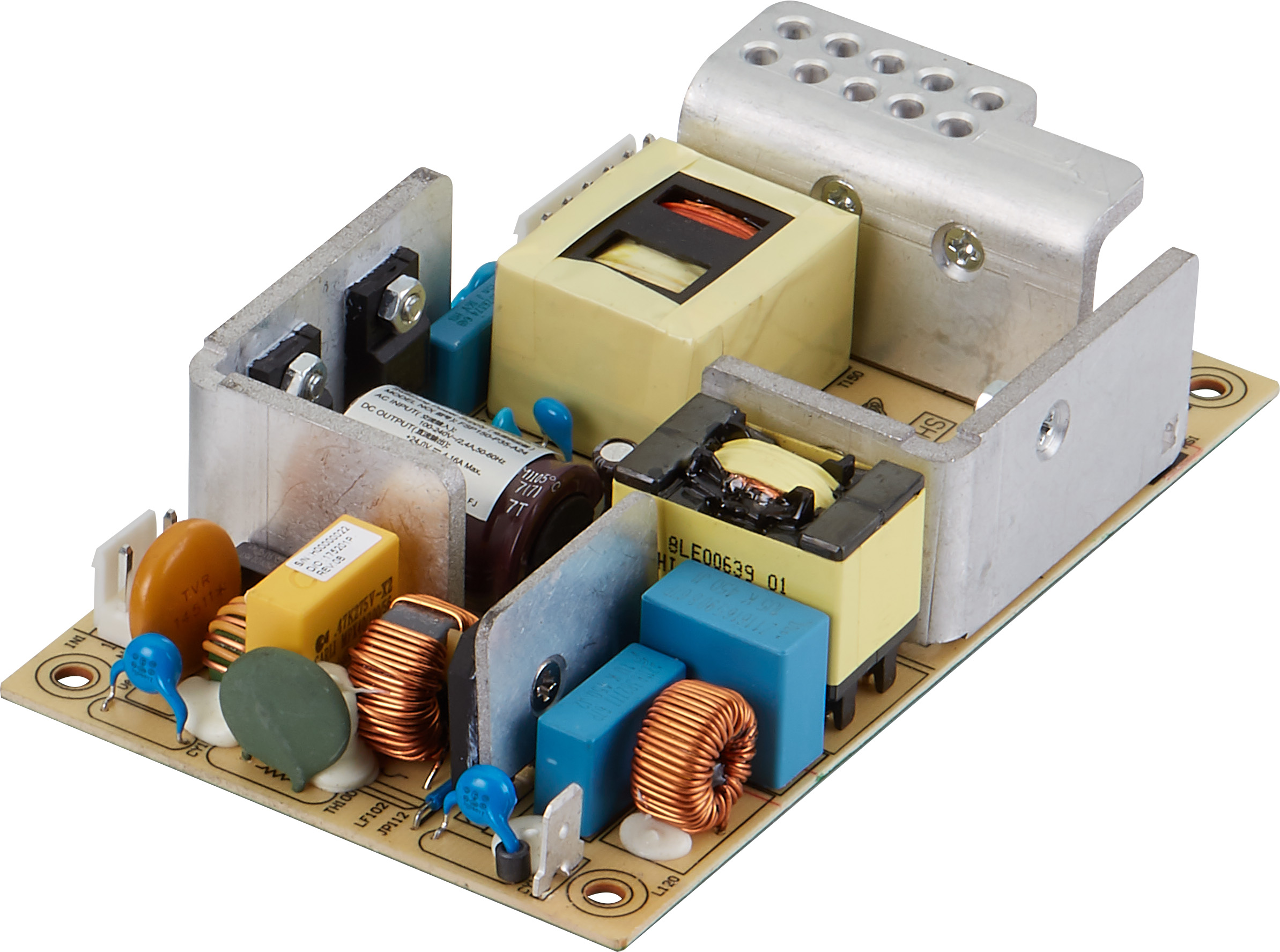

FSP150-P35 Series

Manufacturer
Power	150.00 W
Package	Embedded
Input voltage	90-264 VAC
Efficiency	0.00
Available output range (V)	0-200
Max output current	0.00
Electronic load input rating power	0.00
Dimensions	76.2x127x28.6mm
Water-cooled option	No

Features:

Class-I design
Design to meet IEC 60950-1and IEC 62368-1 safety standard
Low profile 3x5x1.126 inches
No load power consumption less than 0.21W
EN 55032 Class B radiated emission
Surge protection ±2 KV diff, ±4 KV com
High altitude 5000 meters operation
OTP, Brown out protection
12V fan driver

Description:

This AC-DC switching power supplies in a package of 3 x 5 inches is a Class-I PSU and no load power consumption less than 0.21W. This PSU is capable of delivering 150 watts continuous power at 7 CFM forced air cooling or 100 watts continuous power at convection cooling and 50℃ operation temperature. Product is suitable for display, information, and networking application.

Download datasheet
