FSP250-H24 A Series

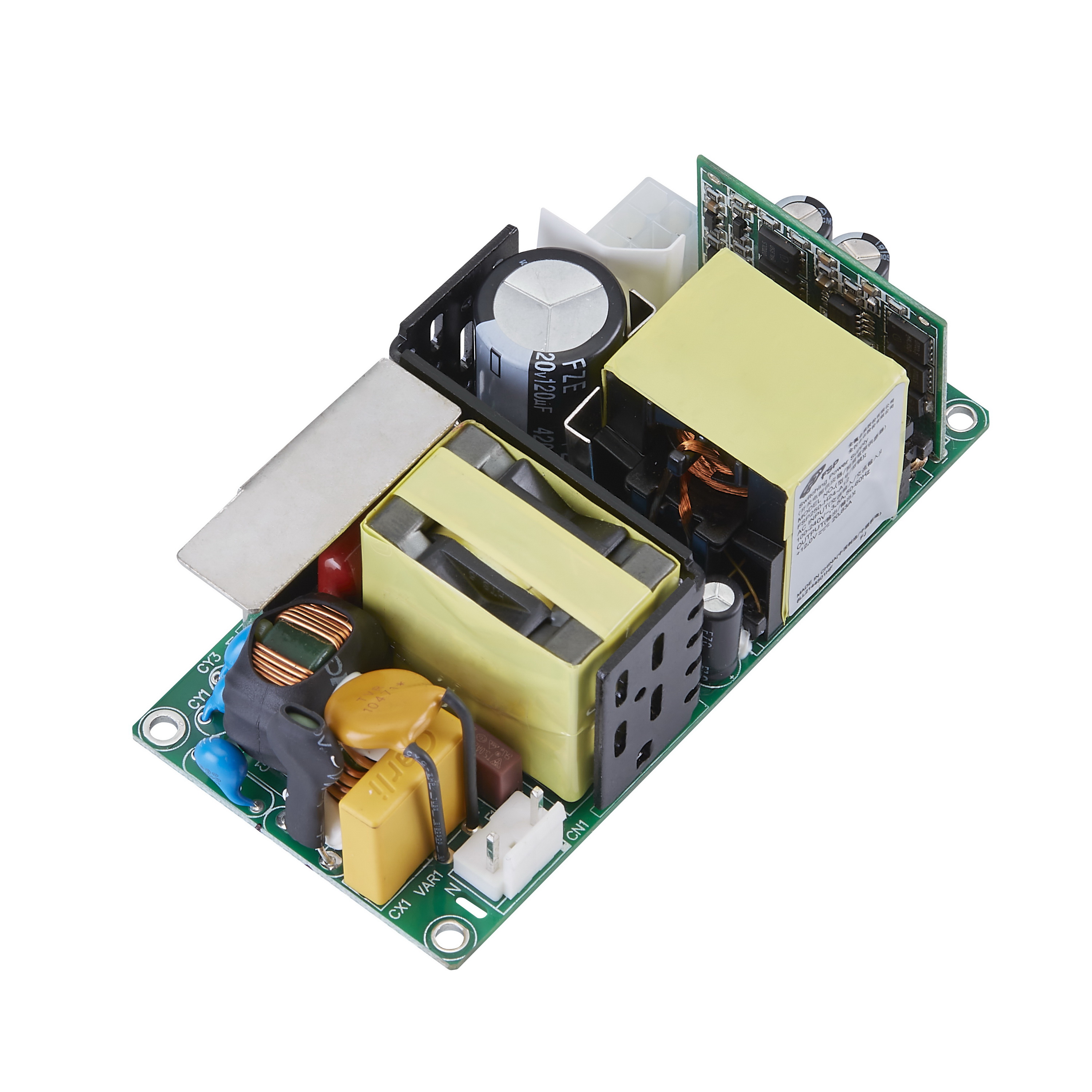

FSP250-H24 A Series image
Manufacturer FSP logotype
Power 250.00 W
Package Embedded
Input voltage 90-264 VAC
Efficiency 90.00
Available output range (V) 0-360
Max output current 0.00
Electronic load input rating power 0.00
Dimensions 50.8x101.6x28.6mm
Water-cooled option No

Features:

  • Class-I design
  • IEC 62368-1 safety standard
  • Input power less than 0.5W @ 0.2W load
  • Compact 2”x4”x1.283”
  • EN 55032 Class B radiated emission

Description:

This AC-DC switching power supplies in a package of 2 x 4 inches is a Class-I PSU and feature with 0.5W low input power consumption at 0.2W load. This PSU is capable of delivering 250 watts continuous power at 14 CFM forced air cooling or 150 watts continuous power at convection cooling and 50℃ operation temperature. Product is suitable for information & networking application.
Download datasheet
