FSP280-2F47-A54H

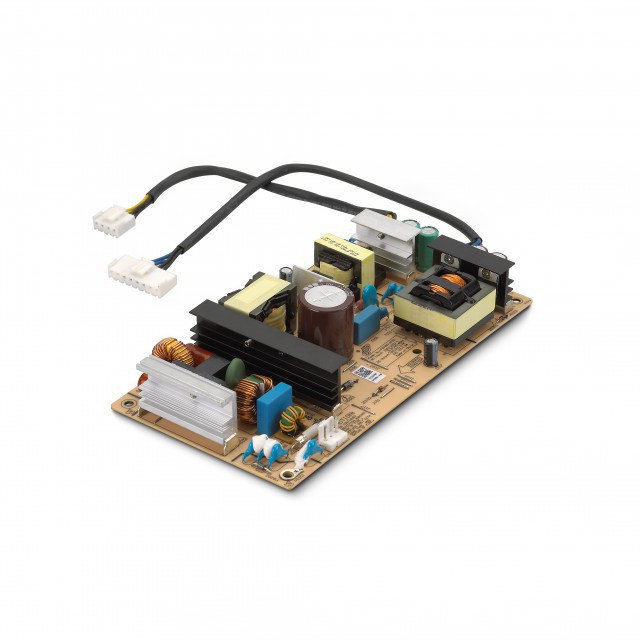

FSP280-2F47-A54H image
Manufacturer FSP logotype
Power 280.00 W
Package Embedded
Input voltage 90-264 VAC
Efficiency 90.00
Available output range (V) 0-360
Max output current 0.00
Electronic load input rating power 0.00
Dimensions 101.6x19.05x3.66mm
Water-cooled option No

Features:

  • Class-I design
  • Low inrush current
  • Meet EN 55032 and FCC Class B
  • Isolated between +12V & +54V outputs
  • Isolated between PE and RETURN
  • Surge protection ±3 KV diff, ±6 KV com
  • High altitude 5000 meters operation

Description:

This AC-DC switching power supplies in a package of 4 x 7.5 inches is an isolated dual outputs 54V & 12V PSU that suitable for PoE Switch & Network application. This PSU is capable of delivering 280 watts continuous power with 7 CFM forced air cooling.
Download datasheet
