FSP450-H35 A Series

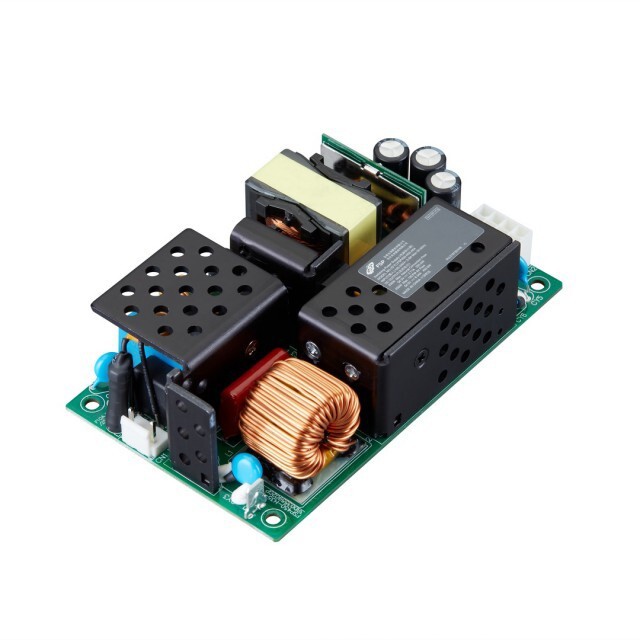

FSP450-H35 A Series image
Manufacturer FSP logotype
Power 450.00 W
Package Embedded
Input voltage 90-264 VAC
Efficiency 95.00
Available output range (V) 0-500
Max output current 0.00
Electronic load input rating power 0.00
Dimensions 76.2x127x35.6mm
Water-cooled option No

Features:

  • Class-I design
  • IEC 62368-1 safety standard
  • Dimension 3" x 5" x 1.343"
  • EN 55032 Class B conducted emissions
  • Standby power less than 0.5W

Description:

This AC-DC switching power supply series in a package of 3 x 5 inches is a Class-I (with Protection Earth) safety construction and feature with 0.5W low input power consumption at 0.2W load which is complying with Energy Star requirement. This PSU is capable of delivering 450 watts continuous power at 18 CFM forced air cooling or 200 watts continuous power at convection cooling and 50℃ operation temperature. Product is suitable for information, audio & video and networking applications.

Download datasheet
