HBU100

Manufacturer
Power	100.00 W
Package	Open-frame
Application	Medical
Input voltage	90-260VAC
Efficiency	0.00
Max output current	0.00
Electronic load input rating power	0.00
Warranty	3 Years
Dimensions	101.6x50.8x26mm
Weight	0.250
Water-cooled option	No

Features:

Wide Operating Voltage, 90 to 260 VAC, 47 to 63 Hz
Single Output
Crowbar Mode Over Voltage Protection
Size: 2”x4”x1.02”
Input to Output : 2MOPP
High ESD Immunity
Suitable Professional Healthcare Facility
3-Year Warranty

Description:

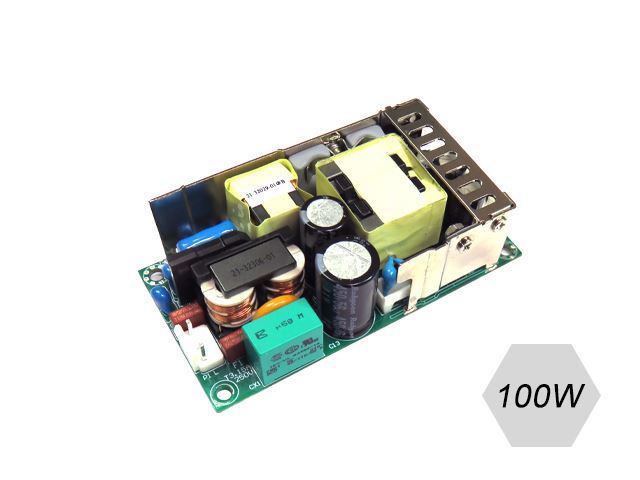

The HBU100 series of AC/DC switching mode power supplies provide 100 Watts of continuous output power. All models meet CISPR-11 and EN55011 class B emission Limits, IEC 60601-1-2 and are designed to comply with UL/cUL, TUV T-mark and conformity assessment in CE marking. All units pass burn-in test at full load condition
