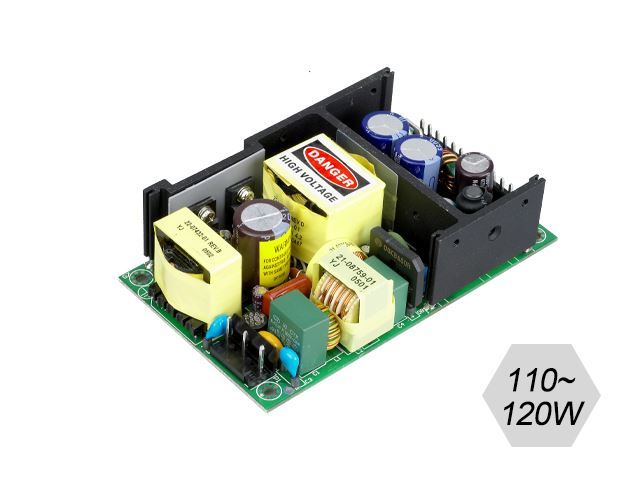

IBU120

Manufacturer
Power	120.00 W
Package	Open-frame
Application	Industrial
Input voltage	90-260VAC
Efficiency	0.00
Max output current	0.00
Electronic load input rating power	0.00
Warranty	5 Years
Dimensions	127x76.2x33.6mm
Weight	0.428
Water-cooled option	No

Features:

Wide Operating Voltage 90 to 260 VAC,47 to 63 Hz
Internal EMI filter
Crowbar Mode Over Voltage Protection
Single to Triple Output
Active Power Factor Correction
Power Fail Detect (Optional)
Class I system
5 year warranty

Description:

The IBU120 series of AC/DC switching mode power supplies provide 120 Watts of continuous output power. All models meet FCC Part15 class B and CISPR-32 class B emission Limits and are designed to comply with UL/c-UL and CE marking conformity assessment. All units pass burn-in test at full load condition.
