KAS

Manufacturer
Power	4.00 W
Package	PCB-mounted
No. of outputs	1
Input voltage	90-305Vac
Efficiency	0.00
Max output current	0.00
Electronic load input rating power	0.00
Warranty	3 years
Dimensions	37.0 x 27.5 x 17.5
Weight	0,026
Water-cooled option	No

Features:

90 - 305VAC Input Voltage
Class II (No ground needed)
Wide Temperature Range (-40 to +80°C)
Low off-load Power Consumption

Description:

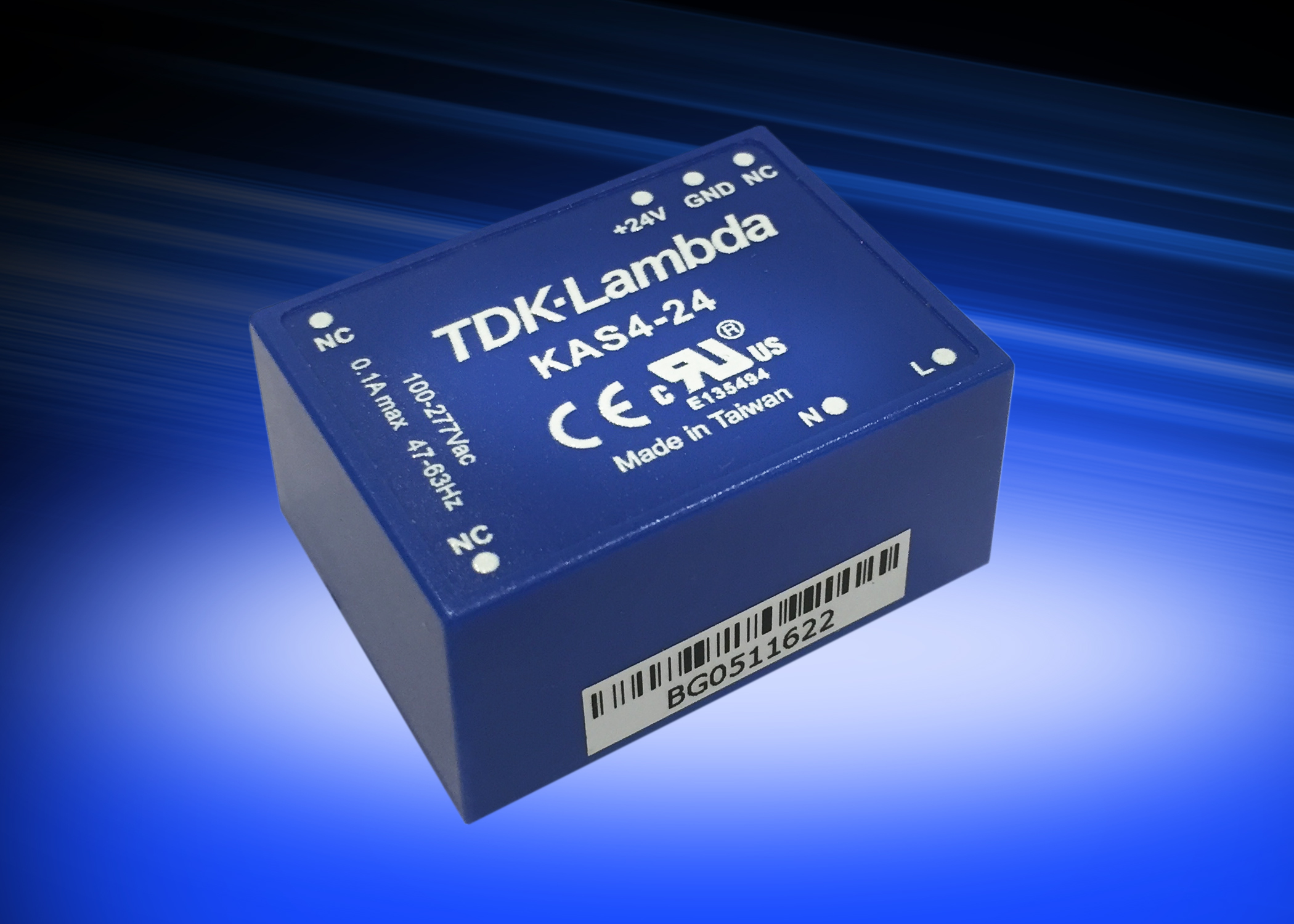

Designed to meet the household requirements of 60335-1 the KAS series with its wide operating temperature range up to 80°C, and start-up temperature of -40°C, is suitable for both domestic and industrial applications. The encapsulated board mounted power supplies do not need a ground connection and are available in 4W power levels. The KAS series provide an off-load power consumption less than 0.3W and Class B EMC performance.
