KWS25A

Manufacturer
Power	25.00 W
Package	PCB-mounted
No. of outputs	1
Application	Standard
Input voltage	85-265Vac
Efficiency	0.00
Max output current	0.00
Electronic load input rating power	0.00
Warranty	3 years
Dimensions	63.5 x 25.4 x 29 mm
Weight	0.085
Water-cooled option	No
Manual	Link

Features:

Protection Class II, No Ground Connection
Small footprint without the need for external components
Long Electrolytic Capacitor Lifetime
No load power consumption less than 0.5W
Improved efficiencies up to 88%
Wide Temperature Range -40°C (start up) to +85°C

Description:

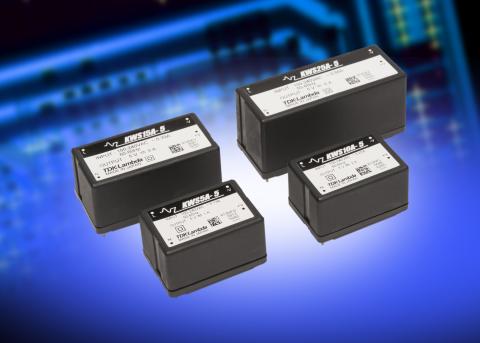

The KWS-A Series is a compact AC/DC supply with no need for external components. It has a 66% footprint saving over the previous generation, KWS, improved efficiency values up to 88% and no load power consumption of less than 0.5 W.

Download datasheet
