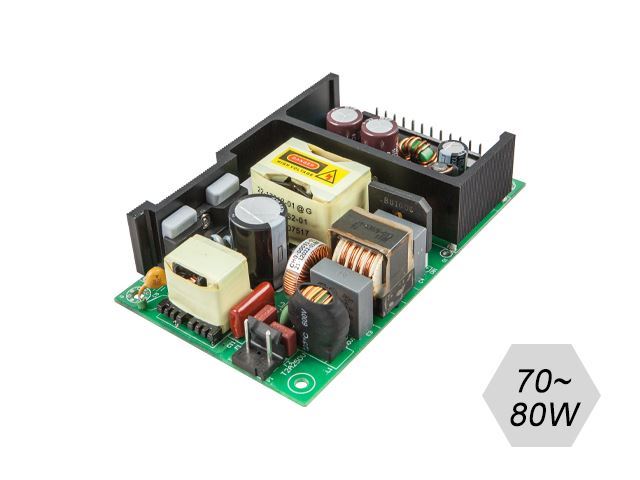

MBU81

Manufacturer
Power	80.00 W
Package	Open-frame
Application	Medical
Input voltage	90-260VAC
Efficiency	0.00
Max output current	0.00
Electronic load input rating power	0.00
Warranty	5 Years
Dimensions	127x76.5x28.6mm
Weight	0.3
Water-cooled option	No

Features:

Wide Operating Voltage, 90 to 260 VAC, 47 to 63 Hz
Single Output
Crowbar Mode Over Voltage Protection
Input to Output : 2MOPP
High ESD Immunity
Suitable Professional Healthcare Facility
Active Power Factor Correction
5-Year Warranty

Description:

The MBU81 series of AC/DC switching mode power supplies provide 80 Watts of continuous output power. All models meet FCC Part-18, CISPR-11 and EN55011 class B emission Limits, IEC 60601-1-2 and are designed to comply with UL/cUL, TUV T-mark and conformity assessment in CE marking. All units pass burn-in test at full load condition.
