MDS-200ADB12 AA

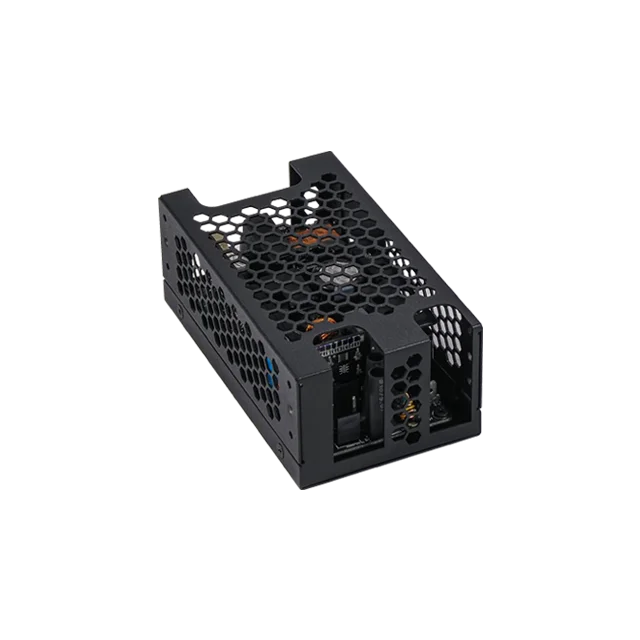

MDS-200ADB12 AA image
Manufacturer Delta logotype
Power 200.00 W
Package Panel Mount
Input voltage 90-264VAC
Efficiency 0.00
Available output range (V) 12V
Max output current 0.00
Electronic load input rating power 0.00
Dimensions 113.9x64.7x44.7mm
Weight 0.345
Water-cooled option No

Features:

  • Safety Approvals to IEC 60601-1 & IEC 62368-1
  • Compliant with IEC 60601-1-2 Ed. 4 Requirements
  • 2.5" x 4.5" x 1.8" Package
  • Power Good Signal
  • Up to 800K Hours MTBF
  • Up to 110W convection, 200W forced air

Description:

The MDS-200ADB12 AA enclosed power supply comes with universal AC input range from 90 Vac to 264 Vac. Other features include low leakage, Type BF Patient Access Leakage Currents, and electric shock protection compliance with 2 x MOPP requirements. The MDS-200ADB12 AA is certified for EMC standards according to EN/BS EN 55011 for industrial, scientific and medical (ISM) radiofrequency equipment; and, EN/BS EN 55032 for Industrial Technology Equipment (ITE) radio-frequency equipment. The MDS-200ADB12 AA comes with both medical and ITE safety approvals, including UL/CE, and CB certification. Designs are compliant with RoHS Directive for environmental protection.
