MDS-400APB24 Series

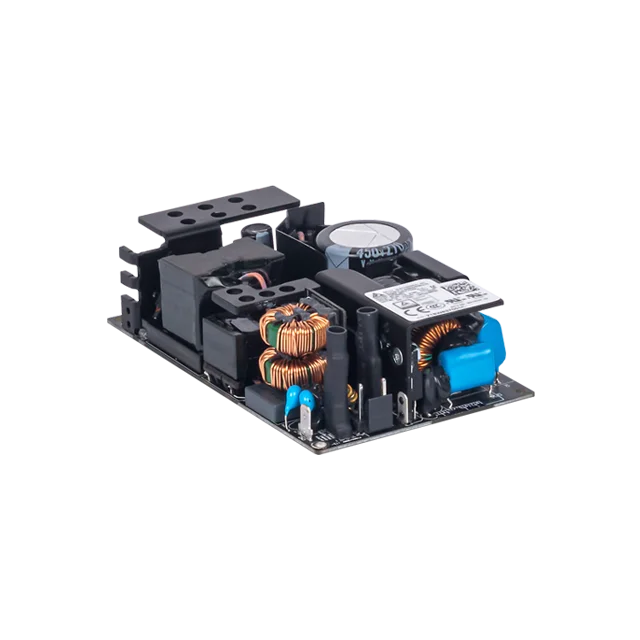

MDS-400APB24 Series image
Manufacturer Delta logotype
Power 400.00 W
Package Open-frame
No. of outputs 1
Input voltage 90-264VAC
Efficiency 0.00
Available output range (V) 24V
Max output current 0.00
Electronic load input rating power 0.00
Dimensions 127x76.2x35.6mm
Weight 0.405
Water-cooled option No

Features:

  • Safety Approvals to IEC 60601-1 & IEC 62368-1
  • Compliant with IEC 60601-1-2 Ed. 4 Requirements
  • Up to 200 W convection, 400 W force air
  • IT & Medical Safety Approvals

Description:

The MDS-400APB24 of internal open frame power supplies come with universal AC input range from 90 Vac to 264 Vac. Other features include low leakage, Type BF Patient Access Leakage Currents, and electric shock protection compliance with 2 x MOPP requirements. The MDS series is certified for EMC standards according to EN/BS EN 55011 for industrial, scientific and medical (ISM) radio-frequency equipment; and, EN/BS EN 55032 for Industrial Technology Equipment (ITE) radio-frequency equipment. The MDS-400A series comes with both medical and ITE safety approvals, including UL/CE, and CB certification. Designs are compliant with RoHS Directive for environmental protection.
