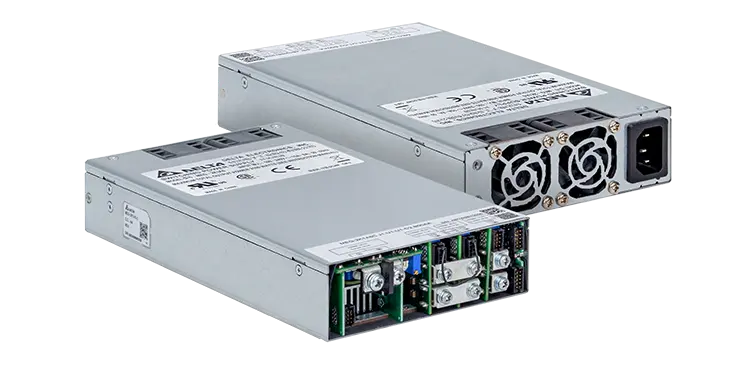

MEG-3K0A Series

Features:

• Up to 3000 W in 7” x 10” x 1.59” Package
• Up to 27 W/inch3 Power Density
• Full Power up to 50°C Ambient
• 9 Slots Modules Configurable
• 2 x MOPP Isolation for Medical Application
• Output selectable from 2 V to 60 V
• Current sharing
• Class B Conducted and Radiated EMI
• IEC 60601-1-2 4th edition immunity compliance
• Normal and Reversed Option for Global Remote On/Off & Air Flow Direction without power de-rating
• Analog and Digital Voltage Trimming
• PMBus Ver 1.3 Supported
• Intelligent Fan Speed Control
• Optional RS485/RS232/USB Communication Adapters
• PC GUI for easy parameter setting and monitoring
• Conformal coating on PCBAs to protect against common dust and pollutants

Description:

MEG-A Series output voltage can be configured between 2Vdc to 60Vdc, and output current up to 45A with a single slot output module. Triple slot and dual output modules are also available for different system requirements. It comes with universal AC input from 90Vac to 264Vac and a wide operating temperature of -20°C to +70°C (with full power up to 50°C). Additional features of this configurable power supply include current sharing, PC GUI for easy parameter setting and monitoring, and intelligent fan speed control. Communication adapters can also convert PMBus to USB, RS232, or RS485 according to system requirements.
