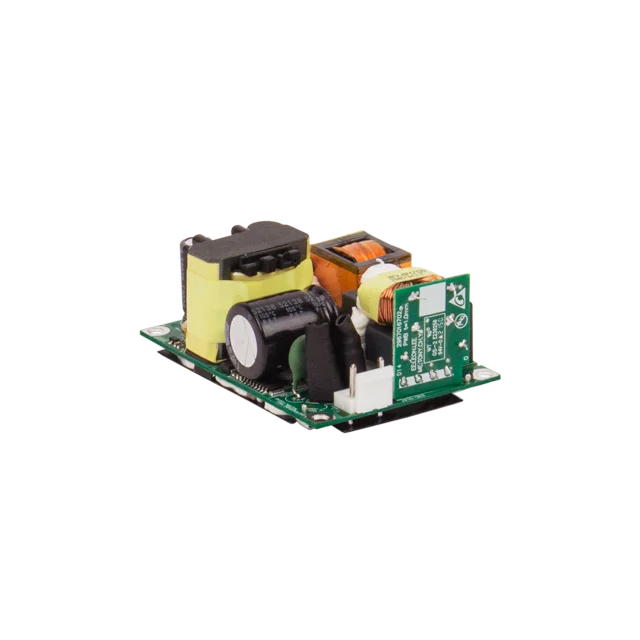

MEP-120A12J

Features:

• 2" x 3" x 1.2" Package with base
• Up to 16.67 W/inch3 power density
• Up to 120 W output with natural convection cooling
• Up to 150 W peak power for 10 sec
• No Load Consumption < 0.21 W
• Up to 70 °C Ambient Operation
• Up to 700KHrs MTBF
• 2 x MOPP Isolation
• Suited for Type BF Medical Products.
• Class B Conducted and Radiated EMI
• IEC60601-1-2 4th Edition Immunity Compliance

Description:

The MEP-120A offers 120 W output power and 4 output voltage of 12 V, 15 V, 18 V and 24 V in a 2” x 3” footprint. It supports up to 150W peak power for 10 seconds and features a wide operating temperature ranging from -30°C to +70°C. With low no load power consumption < 0.21 W and electric shock protection complying with 2 x MOPP, the MEP-120A offers reliable power supply for type BF medical equipment. The MEP-120A is certified with medical, ICT and home appliance safety approvals, including UL/ TUV/ CE/ UKCA and CB certification, as well as EMC approvals to EN 55032 Class B. It is applicable to type BF medical products, IT equipmen t and household appliances.
