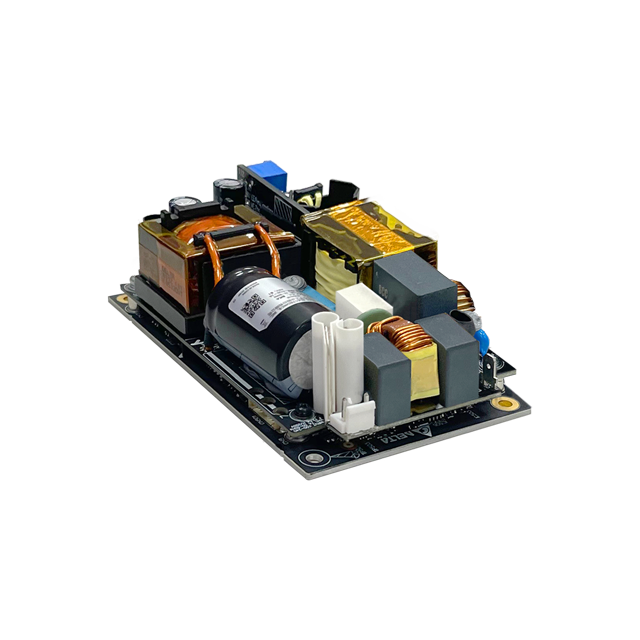

MEP-600A24J BRA

Features:

• GaN based technology
• 3" x 5" x 1.5" package with base
• Up to 26.67 W/inch3 power density
• Up to 600 W output with fan cooling
• Up to 450 W output with natural convection cooling
• 5V / 2A standby output
• Built-in remote on off & current sharing function
• Remote sense voltage compensation
• Digital voltage trimming
• Up to 80 °C operating temperature
• Up to 500KHrs MTBF
• 2 x MOPP isolation
• Suited for Type BF medical products
• Class B conducted and radiated EMI
• Medical, IT and household appliances safety approvals

Description:

The GaN based technology MEP-600A offers high power density in a 3” x 5” footprint. It supports up to 600 W output power in a wide operating temperature ranging from -20°C to +80°C. With 5V/2A standby power and electric shock protection complying with 2 x MOPP, the MEP-600A offers reliable power supply for type BF medical equipment. The MEP-600A is certified with medical, IT and home appliance safety approvals, including UL/ TUV/ CE and CB certification, as well as EMC approvals to EN 55032 Class B. It is applicable to type BF medical products, IT equipment and household appliances.
