MU6 Series

Features:

• Extremely low audible noise fan Enhanced patient / user experience
• BF ready medical isolation (MOPP) Eases design into systems (including BF)
• Up to 13 outputs Eliminates need for additional supplies
• PMBus™ communication option Remote monitoring and control
• 7 year warranty Low cost of ownership

Description:

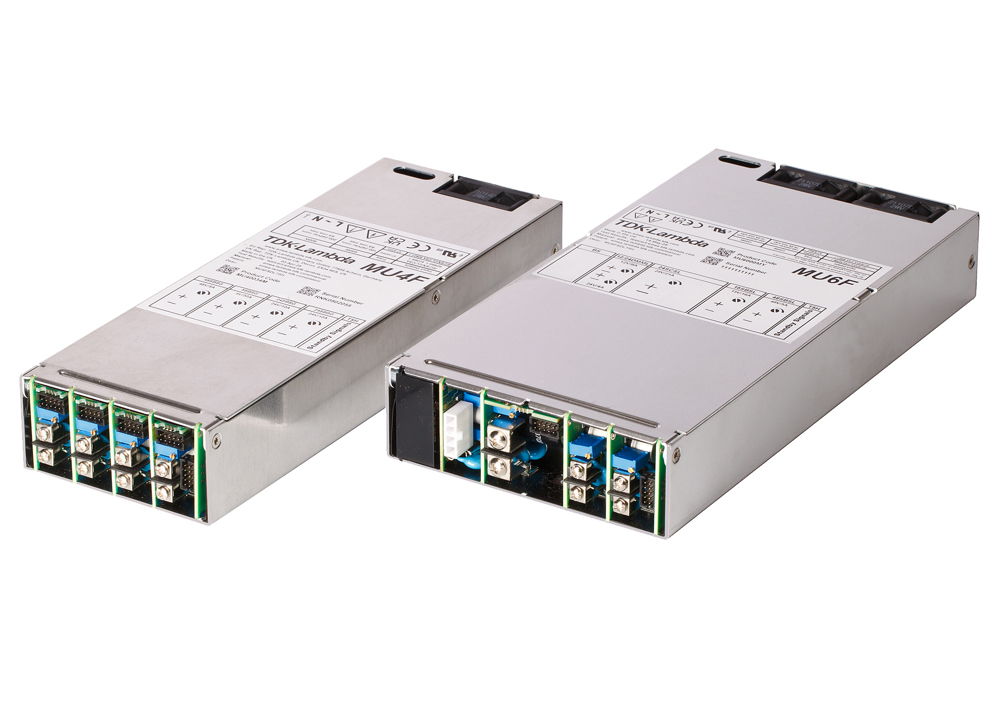

The MU series comes in a 1U fan cooled Aluminum case offering 2 models (MU4 and MU6) covering output power levels between 600W and 1200W with low line input and between 800W and 1500W with high line input with efficiencies up to 94%. It’s patented intelligent fan control reduces fan rotation speed, producing audible noise as low as 36dBA*. A variety of modules are available with ratings from 96W to 1008W per output, offering a continuous range of voltages from 3.3V to 105.6V. With 1 MOPP (1.5kVac) input to ground, 2 MOPP (4kVac) input to output and 1 MOPP (1.5kVac) output to ground isolation and a selection of standby and control options
