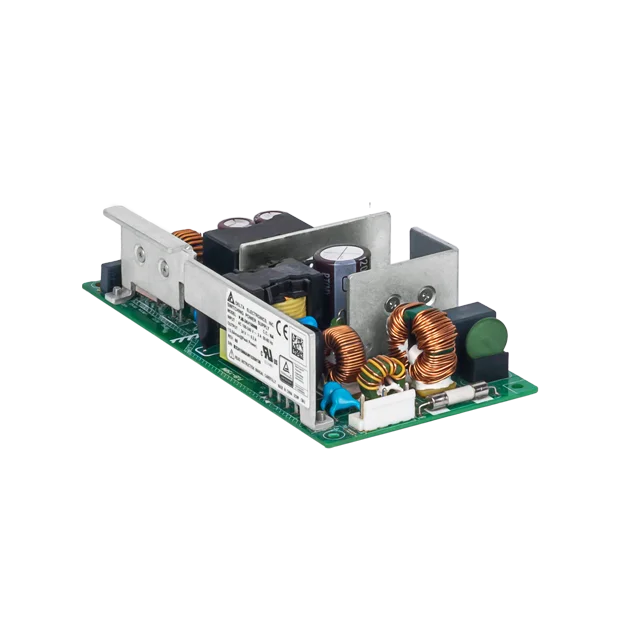

PJB-24V150W Series

Features:

• Universal AC Input (85 Vac – 264 Vac)
• Power Boost of 200% for 10 seconds
• Low Inrush Current / Low Leakage Current
• High efficiency and PF factor to conserve energy
• Conformal coating on PCBA to protect against chemical and dust pollutants
• Remote ON/OFF (Optional)
• No Load power consumption < 0.5 W (Optional)
• Versatile configuration options: Open Frame, L Frame, Enclosed
• Design compliance with Japan PSE (DENAN)* For PJB-24V150WJ□A/H□A/G□A models only

Description:

The PJB series of Open Frame Power Supply comes with universal AC input at 85 Vac to 264 Vac. Features are including low leakage / Inrush current and conformal coating on the PCBAs to provide protection against dust and chemical pollutants and low power consumption for optional. The built-in active PFC provides PF > 0.97 and fulfills Harmonic Current Emission according to IEC/EN/BS EN 61000-3-2. The feature built-in Power Boost of 200% for 10 seconds enables reserve power to be always available for reliable startup of loads with high inrush current, thus eliminating the need of a more expensive power supply unit at higher power rating. Metal chassis and case cover are available as options for different installation preferences.
