Features:
- Major safety approvals include IEC/UL 60950-1, IEC/EN/UL 62368-1, IEC/EN 60335-1, IEC/EN 61558-1 and IEC/EN 61558-2-16
- Available for Class I or Class II (double isolation) configuration with universal AC input voltage range
- 300 W fan cool and up to 240 W convection cool
- Standard industrial footprint of 3” x 5”
- Built-in active PFC, remote ON/OFF, remote sense, power good signal
- No load input power consumption < 0.5 W and low earth leakage current < 0.75 mA
- Extreme low temperature cold start at -40°C
|
Description:

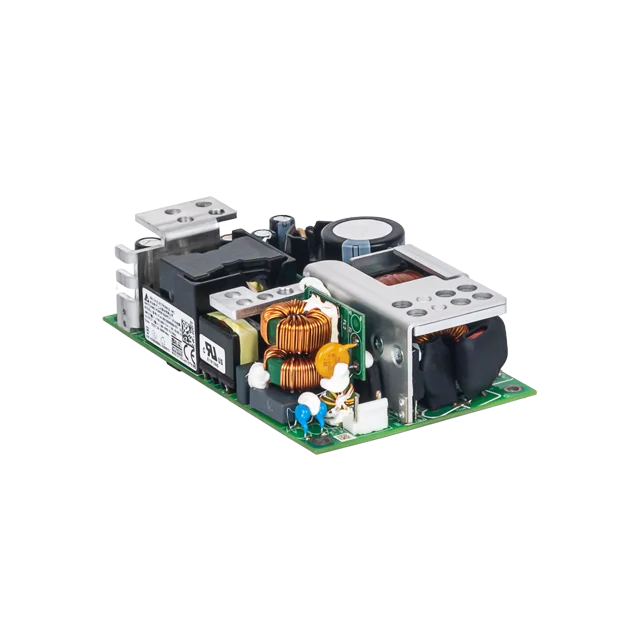

The PJH-300W product is specifically designed with small standard industrial 3” x 5” footprint for household electrical appliances with safety approvals for pollution degree 3 including IEC/EN 60335-1 and IEC/EN 61558-2-16, as well as IEC/UL 60950-1 and IEC/EN/UL 62368-1. The PJH Series of Open frame power supply with 300 W output power and provides up to 240W power convection cooled without additional metal plate. With external fan cooling, it can provide 300 W output power across a wide operating temperature range from -25°C to +70°C across the entire input voltage range of 90 to 264 Vac and features low earth leakage current less than 0.75 mA. The built-in active PFC product can configure with either Class I or Class II (double isolation) and is certified for EMI standards according to EN55032 Class B (with FG connection). |
