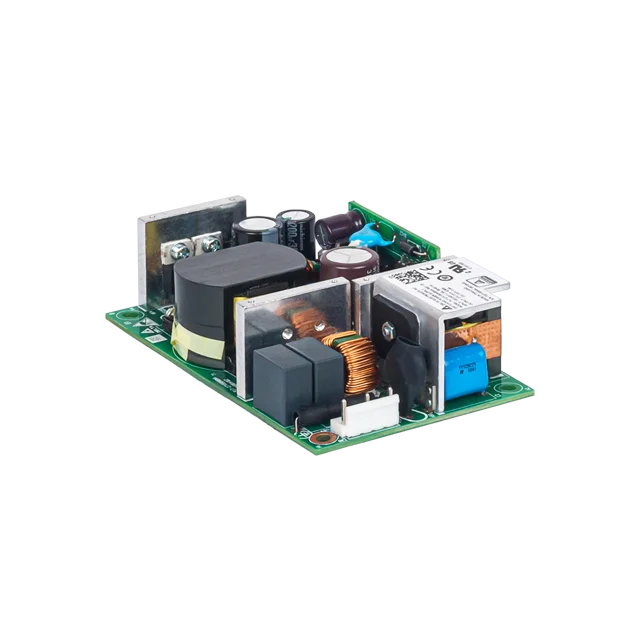

PJT-27V150WBNA

Features:

• Universal AC input voltage
• Standard industrial footprint of 3” x 5”
• Built-in active PFC with up to 89.5% efficiency
• Power Boost 6.48 A (175 W) at 27 V for 5 seconds
• Conforms to harmonic current IEC/EN 61000-3-2, Class A
• Convection cooled 150 Watt operating temperature range from -10°C to +50°
• Built-in standby output 12 V/0.5 A
• High MTBF > 700,000 hrs as per Telcordia SR-332
• Certified according to IEC/EN/UL 62368-1

Description:

The PJT-27V150WBNA comes with both a + 27 V nominal main output, and a standby +12 volt 0.5 amp output. The open frame power supply is designed with small standard industrial 3” x 5” footprint. The highly efficient convection cooled design with optimum thermal management for high power efficiency. The product can operate from -10°C to +70°C across the entire input voltage range of 85 to 264Vac and features built-in Power Boost of 6.48 A (175 W) for 5 seconds. The built-in active PFC product has major international safety standard according to IEC/UL 60950-1, IEC/EN/UL 62368-1 and is certified for EMI standards according to EN 55022, EN55032, and FCC Title 47 Class B.
