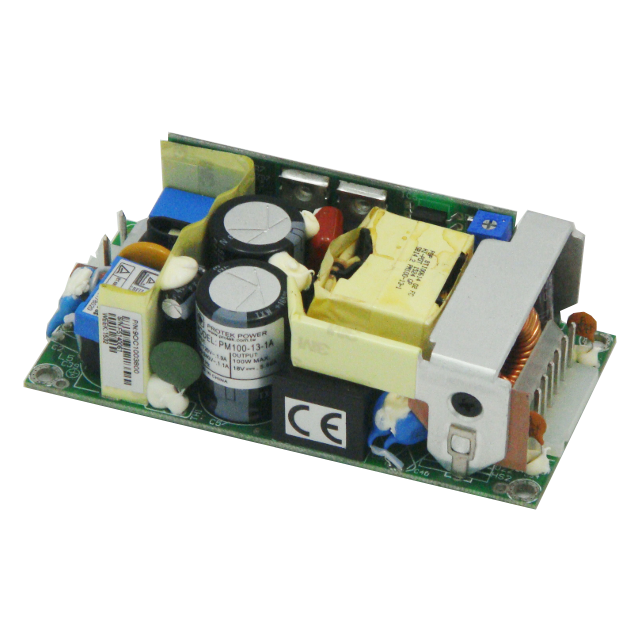

PM100 SERIES MEDICAL

Manufacturer
Power	100.00 W
Package	Open-frame
Input voltage	90-264 VAC
Efficiency	0.00
Available output range (V)	0-200
Max output current	0.00
Electronic load input rating power	0.00
Dimensions	50.8x101.6x32.01mm
Water-cooled option	No

Features:

Medical approval
High power density 10 W/cubic inch
100 W output with convection cooling up to +50℃
Low earth leakage current
EN55011 class B emissions
RoHS compliant

Description:

The PM100 series of compact, open PCB constructed, AC-DC switching power supplies are capable of delivering 100 watts of continuous output power at convection cooling. They are suited for medical. Approval to EN60601-1 safety standards improves design-in time and reduces end equipment compliance costs.
