PM101 SERIES MEDICAL

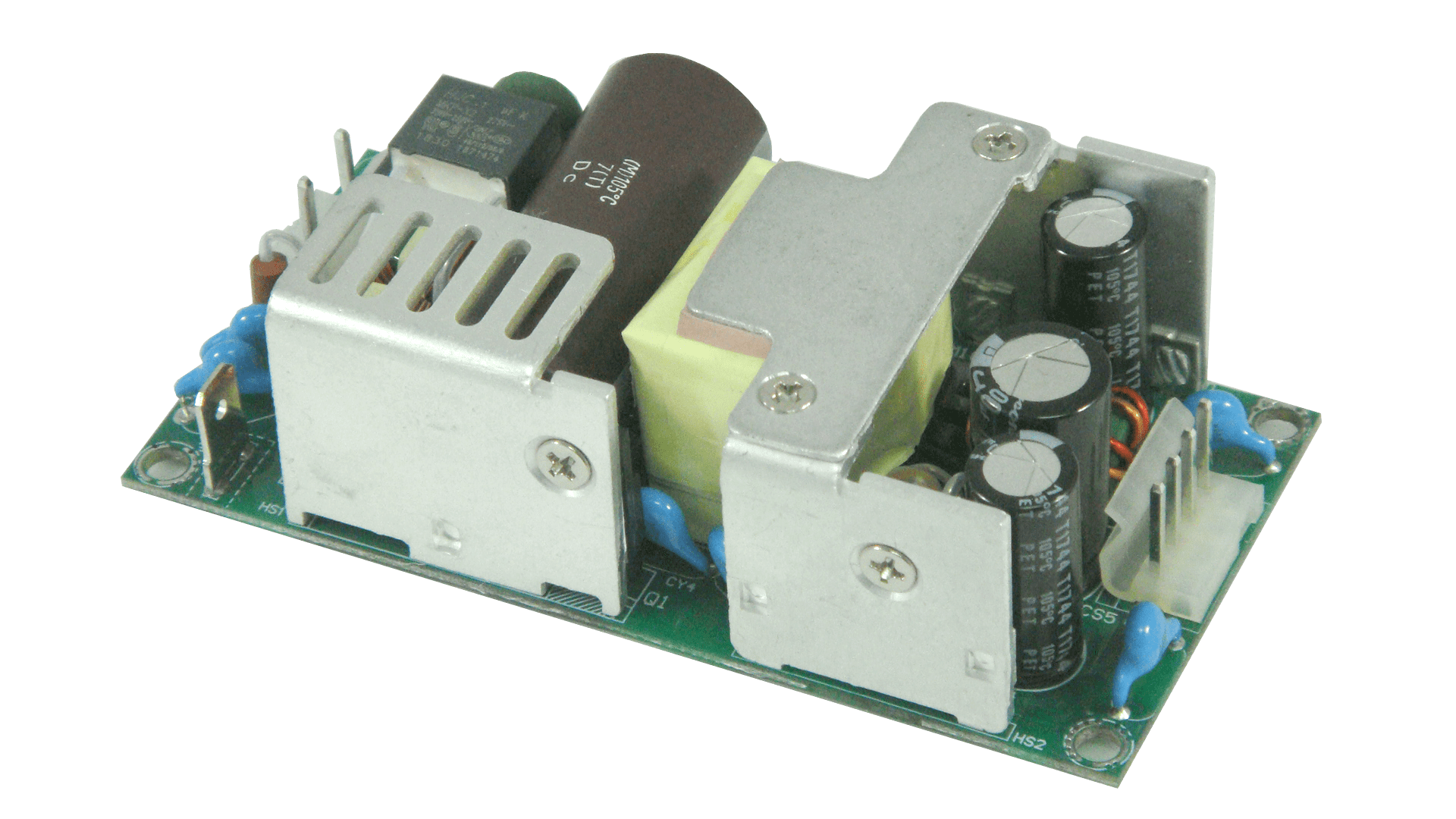

PM101 SERIES MEDICAL image
Manufacturer FSP logotype
Power 80.00 W
Package Open-frame
Notes 100W with forced air cooling.
Input voltage 80-264 VAC
Efficiency 0.00
Available output range (V) 0-80
Max output current 0.00
Electronic load input rating power 0.00
Dimensions 50.8x101.6x32.8mm
Water-cooled option No

Features:

  • BF class insulation
  • Operation altitude up to 5000 meters
  • 2 x 4 inch footprint with 1.29 inch low profile
  • Less than 175 μA leakage current
  • Wide input range 80-264 VAC
  • Meet EN55011 /55032 and FCC Class B
  • Short -circuit protection
  • Compliant with RoHS requirements
  • No load power consumption less than 0.15W

Description:

The PM101 series of AC-DC switching power supplies in a package of 2 x 4 x 1.29 inches are capable of delivering 100watts of continuous power at 7.5 CFM forced air cooling or 80 watts at convection cooling. The units are constructed on a printed circuit board. They are suited for medical applications, information technology and industrial applications. Approval to both IEC60601-1 and IEC62368-1 safety standards improves design-in time and reduces end equipment compliance costs.
