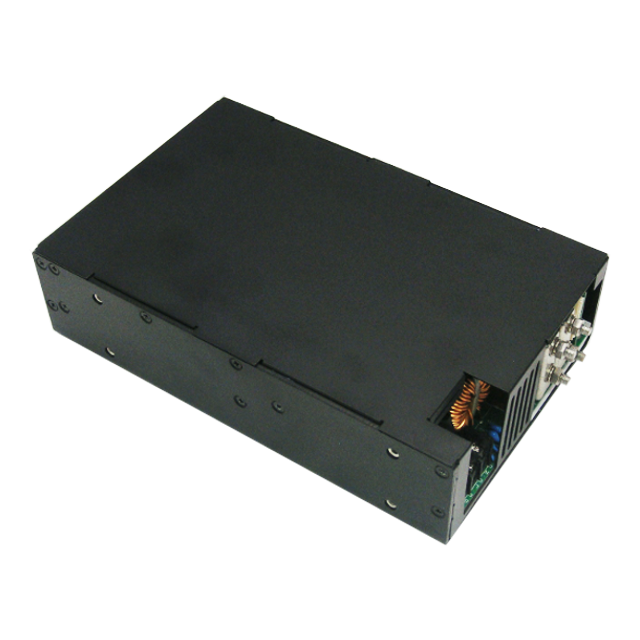

PM1100 SERIES MEDICAL

Features:

• BF Class insulation
• Operation altitude up to 5000 meters
• 80-264 VAC input with active PFC
• Less than 300 μA leakage current
• EN55011 Class B conducted emissions
• Inhibit TTL high to disable output
• Standard PS Off and DC OK signals
• High efficiency 89% typical
• Compliant with RoHS requirements
• Standby output 5 VDC at 200 mA
• Variable speed interfan fan
• Overvoltage proctecion
• overcurrent protection
• Over temperature protection

Description:

The PM1100 series of AC-DC switching power supplies in a package of 5.91 x 9.25 x 2.4 inches are capable of delivering 1100 watts of continuous power. The units are constructed on a printed circuit board with an enclosed format for mechanical support and heat sinking. They are designed for medical applications including those needing BF rated insulation and/or an operation altitude up to 5000 meters.
