PM400 SERIES MEDICAL

Features:

• BF Class insulation
• Operation altitude up to 5000 meters
• 100-240 VAC input with active PFC
• Less than 300 μA leakage current
• Standby output 5VDC at 100mA
• EN55011 / 55032 Class B conducted emissions
• Inhibit - TTL low to disable output
• Standard PS Off and DC OK signals
• High Efficiency 92% typical
• Compliant with RoHS requirements

Description:

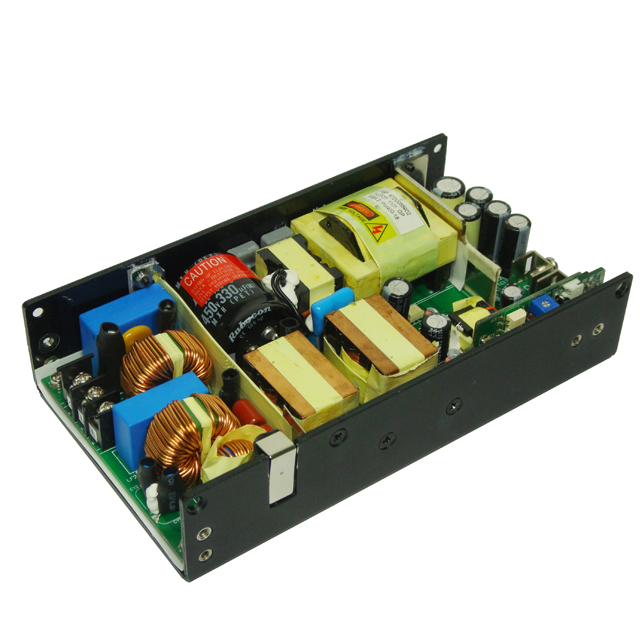

The PM400 series of AC-DC switching power supplies in a package of 4 x 7 x 1.58 inches are capable of delivering 400 watts of continuous power at 7 CFM forced air cooling or 300 watts at convection cooling. The units are constructed on a printed circuit board with a U-bracket for mechanical support and heat sinking. A cover and fan assembly can be added during manufacturing for 400 watt output without the change of any dimension. They are designed for medical applications. The units are certified also to IEC/EN/UL 62368-1 and suitable for data networking, industrial and telecommunication applications.
