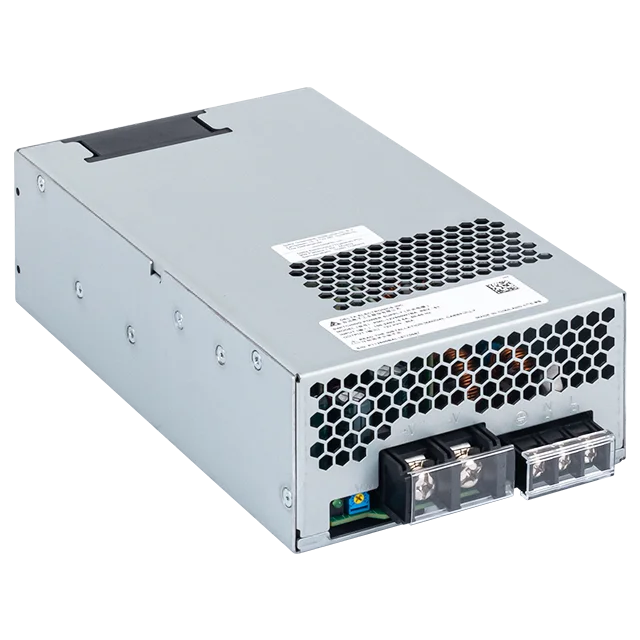

PMC-12V600W1BA

Features:

• Universal AC input range
• Built-in active PFC and high efficiency up to 89% @ 230 Va
• Power Boost of 200% for 3 seconds and 150% for 5 seconds
• SEMI F47 compliance at 120 Vac
• Meet Surge Immunity IEC 61000-4-5, Level 4 (CM: 4 kV, DM: 2 kV)
• Built-in fan speed control and fan lock protection
• Wide operating temperature range -20°C to 70°C
• Overvoltage / Overcurrent / Over Temperature / Short Circuit Protections

Description:

The PMC-12V600W1BA has a power rating of 600 W with 12 V output voltage. The product features Power Boost of 200% (peak load 12 V 100 A) for 3 seconds and built-in fan speed control with fan lock protection. The PMC-12V600W1BA accepts the full universal AC input range and have been approved for major safety standards like IEC/EN/UL 62368-1 approval that will replace IEC 60950-1 for ITE which expires on December 20, 2020. EMI according to EN 55011 (Industrial, scientific and medical (ISM) radio-frequency equipment) and EMS according to EN 61000-6-2 (Immunity for industrial environments).
