PMC-24V300W1BA

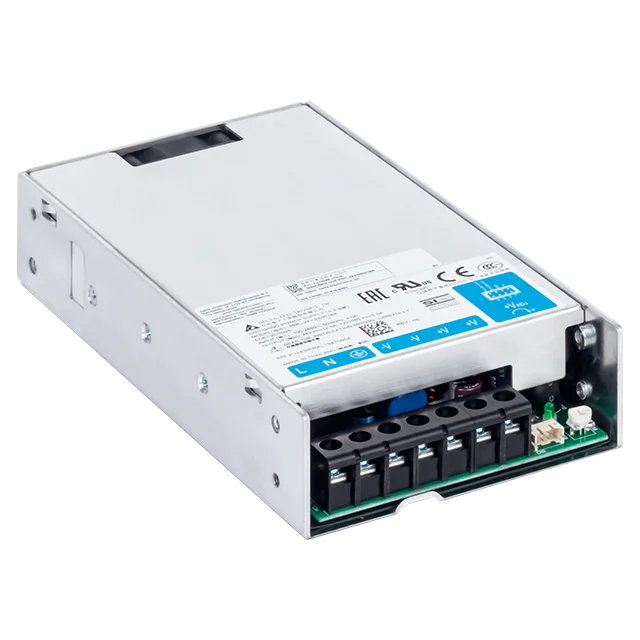

PMC-24V300W1BA image
Manufacturer Delta logotype
Power 300.00 W
Package Panel Mount
Input voltage 85-264VAC
Efficiency 0.00
Available output range (V) 24V
Max output current 0.00
Electronic load input rating power 0.00
Dimensions 199x105x41mm
Weight 0.82
Water-cooled option No

Features:

  • Universal AC input voltage range
  • Full corrosion resistant aluminium casing
  • High PF > 0.99 @ 115Vac
  • Built-in Remote On/Off and 12V SB (STANDBY) / 0.5A
  • High MTBF > 700,000 hrs per Telcordia SR-332
  • Safety approval according to IEC/EN/UL 60950-1, IEC/EN/UL 62368-1 and EMI to EN 55032, Class B
  • Overvoltage / Overcurrent / Over Temperature Protections
  • IP20 certified

Description:

The Hi-End Panel Mount Power Supply with Remote sense function & 12 V STANDBY / 0.5 A is the latest offering from one of the world’s largest power supply manufacturers and solution providers - Delta. The product range offers a nominal output voltage of 24 V, a wide temperature range from -10°C to +70°C and a highly dependable minimum holdup time. The state-of-the-art design is made to withstand harsh industrial environments. What makes the product stands out from the crowd is its lightweight full aluminum body design which can withstand shock and vibration according to IEC 60068-2. The PMC series also offers overvoltage and overload protection. Using a wide input voltage range design, it is compatible worldwide. The input also includes DC operating voltage from 125-375 Vdc. Best of all, this excellent design and quality does not come with a big price tag.

Download datasheet
