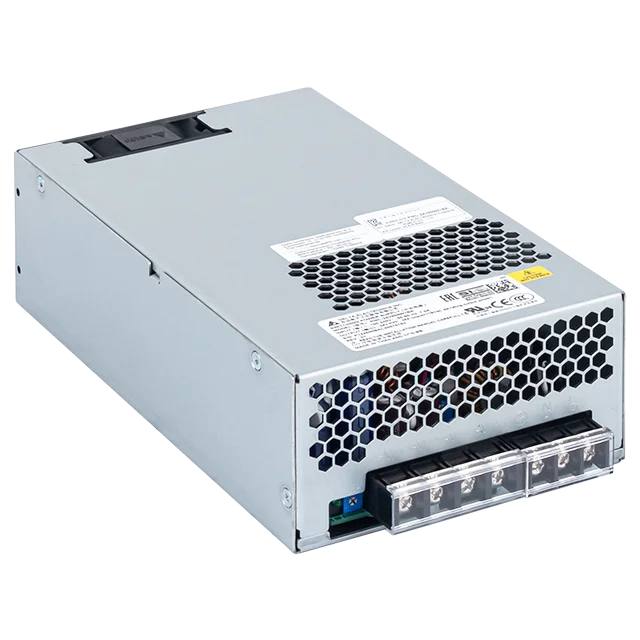

PMC-24V600W1BA

Manufacturer
Power	600.00 W
Package	Panel Mount
No. of outputs	1
Input voltage	85-264VAC
Efficiency	0.00
Available output range (V)	24V
Max output current	0.00
Electronic load input rating power	0.00
Dimensions	215x120x61mm
Weight	1.6
Water-cooled option	No

Features:

Universal AC input range
High PF > 0.99 @ 115 Vac
Power Boost of 200% for 5 seconds
Meet Surge Immunity IEC 61000-4-5, Level 4 (CM: 4 kV, DM: 2 kV)
Built-in fan speed control and fan lock protection
Wide operating temperature range -20°C to 70°C
Overvoltage / Overcurrent / Over Temperature / Short Circuit Protections
Certified according to IEC/EN/UL 62368-1

Description:

The PMC-24V600W1BA has a power rating of 600 W with 24 V output voltage. The product features Power Boost of 200% (up to 1200 W) for 5 seconds and built-in fan speed control with fan lock protection. The PMC-24V600W1BA accepts the full universal AC input range and have been approved for major safety standards like IEC/EN/UL 60950-1 and IEC/EN/UL 62368-1, EMI according to EN 55011 (Industrial, scientific and medical (ISM) radio-frequency equipment) and EMS according to EN 61000-6-2 (Immunity for industrial environments).
