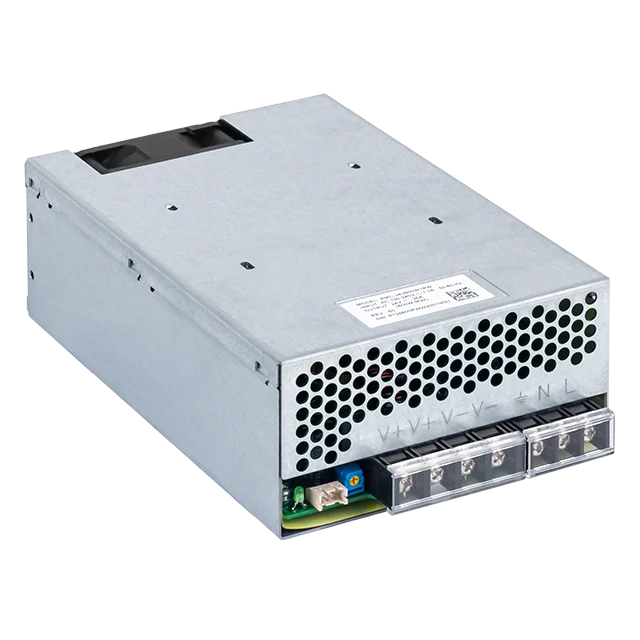

PMC-24V600W1RW

Features:

• Universal AC input range
• Active PFC with high PF value
• Meet Surge Immunity IEC 61000-4-5, Level 4 (CM: 4 kV, DM: 2 kV)
• Wide operating temperature range -20°C to 70°C
• Compact Size
• Conformal coating on PCBA to protect against chemical and dust pollutants
• Built-in constant current circuit for reactive loads
• Design compliance with Japan PSE (DENAN)

Description:

Delta’s 24 V 600 W power supply is now 20% smaller. As part of the PMC Series of Panel Mount power supply, the PMC-24V600W1RW provides 24 V output voltage with high efficiency > 92% @230 Vac. Leakage current has been reduced to less than 0.75 mA, whilst maintaining Power Factor levels up to 0.99. The product has a wide operating temperature of -20°C to 70°C, power de-rating from 50°C. Additional features include remote sense and remote on/off, built-in fan speed control with fan lock protection and conformal coating on the PCBAs to provide protection against dust and chemical pollutants. The PMC-24V600W1RW is certified to IEC 60950-1, IEC/EN/UL 62368-1, K 60950-1 of KC. EMI approvals to EN/BS EN 55032 Class B.
