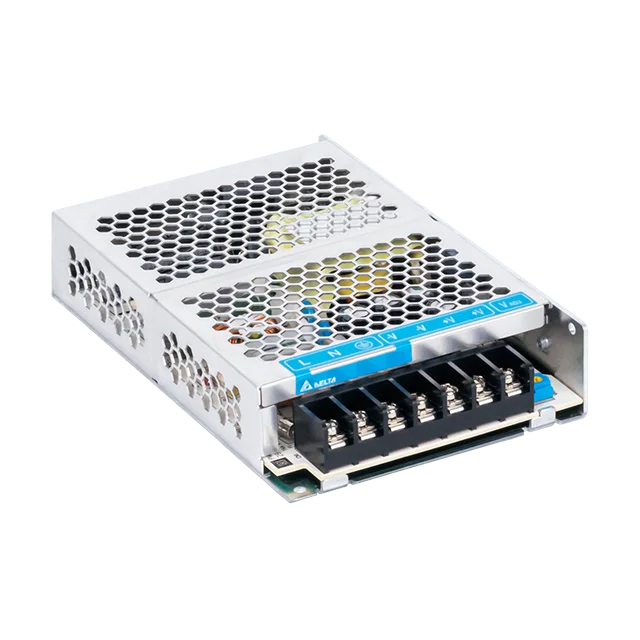

PMH-24V150WCL Series

Features:

• Household appliance approvals for pollution degree 3 to IEC/EN 60335-1, IEC/EN 61558-1 and IEC/EN 61558-2-16
• Universal AC input voltage
• Withstand line input voltage surge 300Vac up to 7 seconds
• Full power from -25°C to +50°C operation @ 5000 m or 16400 ft. altitude
• Full corrosion resistant aluminium casing
• No load input power consumption < 0.3 W @ 115 Vac
• Low earth leakage current < 0.75 mA
• Versatile connector options available: Harness connectors
• Certified according to IEC/EN/UL 62368-1

Description:

The PMH-24V150WCL☐ offers universal input from 85Vac to 264Vac with nominal output voltage of 24V. The highly efficient convection cooling construction can operate from -30°C to 70°C. The single output is specifically designed with compact and competitively priced for household electrical appliances safety approvals to pollution degree 3 as well as including IEC/EN 60335-1, IEC/EN 61558-2-16, IEC/UL 60950-1 and IEC/EN/UL 62368-1. In addition, the product meets the EMC approvals to EN 55014-1 / EN 55014-2 for household appliances and EN 61000-6-2 / EN 61000-6-3 for industrial and residential environment without extra EMI filter required and comes with several connector options consisting of Terminal Block and Harness connectors.
