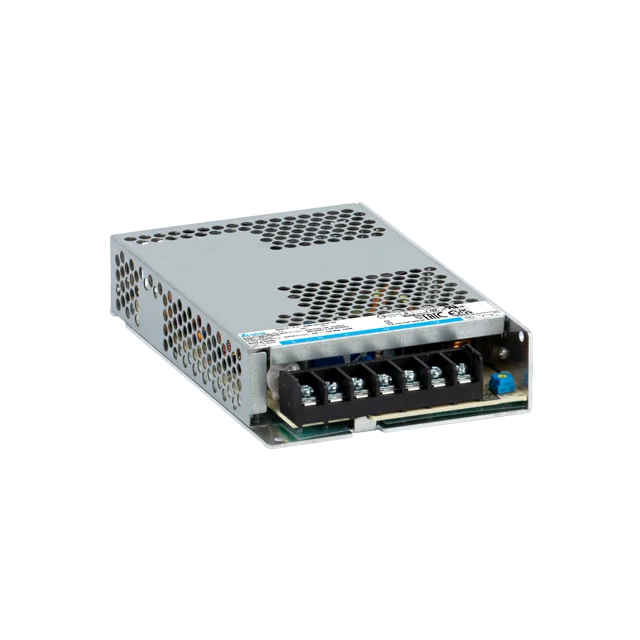

PMR 240 W series

Features:

• Universal AC input voltage
• Built-in active PFC and conforms to harmonic current IEC/EN 61000-3-2, Class A and Class D
• Lower no load power consumption
• Low profile design: 30 mm height
• Household appliance approvals according to IEC/EN 60335-1, IEC/EN 61558-1 and IEC/EN 61558-2-16
• Wide operating temp -30°C ~70°C (Support -40°C cold start)

Description:

PMR series 240 W power supply offers nominal output voltages of 12V / 24 V / 36 V / 48 V across a wide operating temperature range from -30°C to +70°C and obtains shock and vibration certification IEC 60068-2. The product is designed in a low 30 mm profile and comes with a universal AC input voltage ranging from 90 Vac to 264 Vac. The PMR series is made for installation in limited spaces. Its built-in active PFC circuit provides high power factor values and conforms to harmonic current emission standards IEC/EN 61000 -3-2, Class A and Class D.
