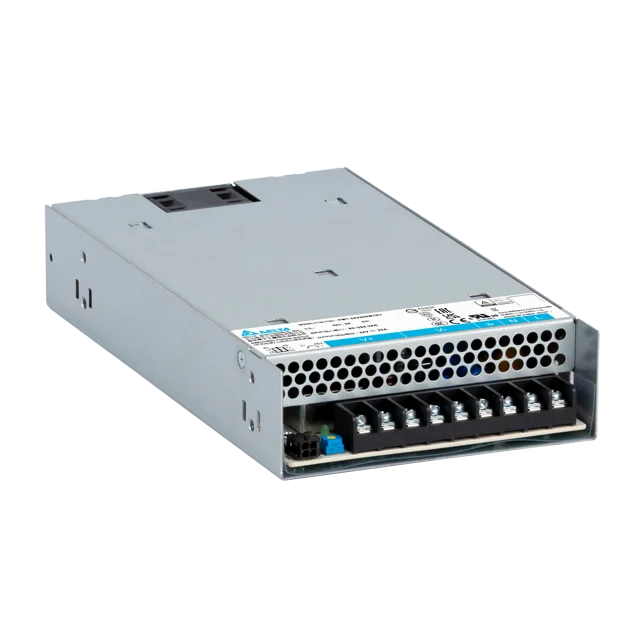

PMR-48V600W1BT

Features:

• Universal AC input voltage
• Built-in active PFC and conforms to harmonic current IEC/EN 61000-3-2, Class A and Class D
• Built-in Remote ON/OFF and Remote Sense
• 1U design: 41 mm height
• Household appliance approvals according to IEC/EN 60335-1, IEC/EN 61558-1 and IEC/EN 61558-2-16
• Wide operating temp -30°C ~70°C (Support -40°C cold start)

Description:

PMR Series 600 W power supply offers the nominal output voltage of 12 V/24 V/36 V/48 V across a wide operating temperature range from -30°C to +70°C and obtains shock and vibration certification IEC 60068-2. The product is designed with 1U low profile and comes with a universal AC input voltage ranging from 90 Vac to 264 Vac. The PMR series is made for installation in limited spaces. Its built-in active PFC circuit provides high power factor values and conforms to harmonic current emission standards IEC/EN 61000-3-2, Class A and Class D.
