PMT-24V350W1A Series

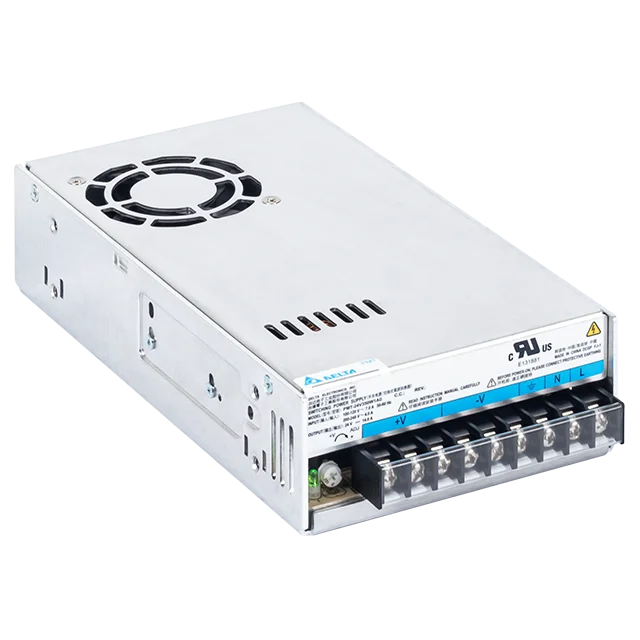

PMT-24V350W1A Series image
Manufacturer Delta logotype
Power 350.40 W
Package Panel Mount
Input voltage 90-132VAC
Efficiency 0.00
Available output range (V) 24V
Max output current 0.00
Electronic load input rating power 0.00
Dimensions 215x115x50mm
Weight 0.82
Water-cooled option No

Features:

  • AC input voltage range selectable by switch
  • Full Aluminium casing for light weight and corrosion resistant handling
  • Built-in automatic fan speed control circuit
  • MTBF > 700,000 hrs as per Telcordia SR-332
  • Short Circuit / Overvoltage / Overload / Over Temperature Protections

Description:

The PMT-24V350W1A☐ offers a nominal output voltage of 24 V with a wide operating temperature range from -10°C to +70°C and can withstand shock and vibration according to IEC 60068-2. In addition to features like overvoltage and overload protections, Delta’s PMT series of panel mount power supplies is unlike many other brands in the same price level. The PMT series is designed for cost competitive markets without compromising the quality of the components and product specifications. The series of products has an expected life time of 10 years and will have no output power de-rating from 100 Vac to 132 Vac & 200 Vac to 264 Vac.
