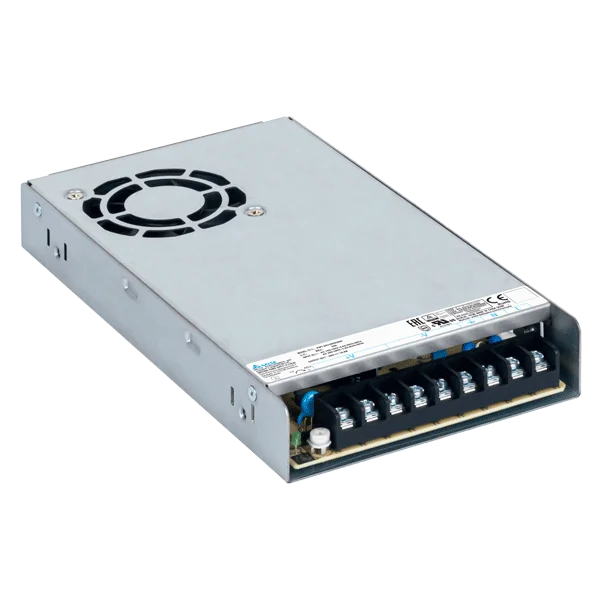

PMT-24V350W2B Series

Manufacturer
Power	350.40 W
Package	Panel Mount
Input voltage	90-132VAC
Efficiency	0.00
Available output range (V)	24V
Max output current	0.00
Electronic load input rating power	0.00
Dimensions	215x115x30mm
Weight	0.833
Water-cooled option	No

Features:

AC input voltage range selectable by switch (90-132 Vac, 180-264 Vac)
No load power consumption < 0.75 W
Low profile design: 30 mm height
High MTBF > 700,000 hrs per Telcordia SR-332
150% Peak power supported as option
Wide operating temp -30°C ~70°C (Support -40°C cold start)

Description:

PMT 2nd generation (PMT2) 350 W power supplies is designed in a low 30mm profile. It uses a selectable AC switch input. With the builtin fan, it can operate from -30°C to 70°C.

Download datasheet
