PMT-D1V75W2B Series

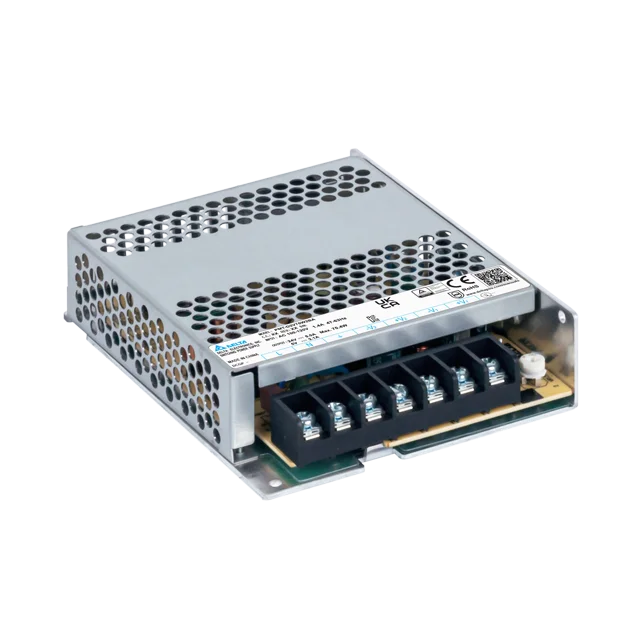

PMT-D1V75W2B Series image
Manufacturer Delta logotype
Power 73.00 W
Package Panel Mount
Input voltage 90-264VAC
Efficiency 0.00
Available output range (V) 12V
Max output current 0.00
Electronic load input rating power 0.00
Dimensions 129x97x30mm
Weight 0.276
Water-cooled option No

Features:

  • Isolated & non-isolated Output & Ground for CH1 & CH2
  • Household appliance approvals to IEC/EN 60335-1, IEC/EN 61558-1 and IEC/EN 61558-2-16
  • Universal AC input voltage range
  • No load power consumption < 0.3 W
  • Low profile design : 30 mm height
  • OVC III, Pollution Degree 3
  • Conforms to harmonic current IEC/EN 61000-3-2, Class A
  • High MTBF > 700,000 hrs per Telcordia SR-332

Description:

PMT 2nd generation (PMT2) power supplies is designed in a low 30 mm profile and accepts universal AC input. The highly efficient convection cooling construction can operate from -30°C to 70°C. The dual output is competitively priced for general industrial and ITE applications. It complies to major safety approvals such as IEC/EN 60335-1, IEC/EN 61558-2-16, IEC/EN 60950-1 & IEC/EN/UL 62368-1.
