PU101 Series

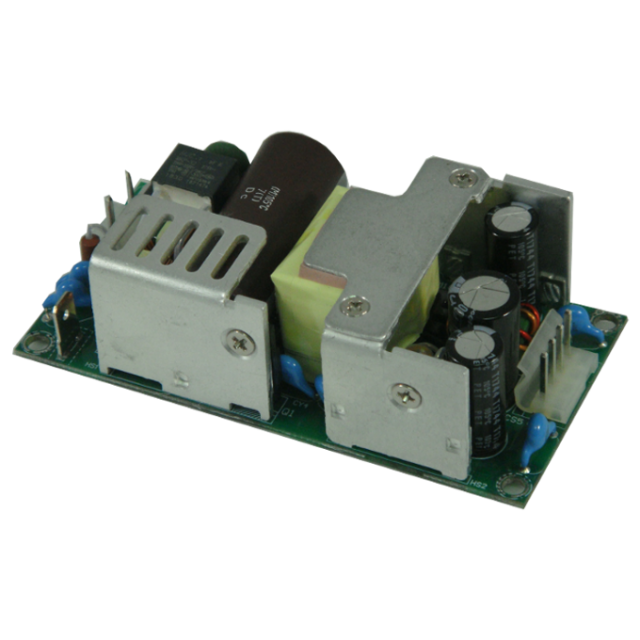

PU101 Series image
Manufacturer FSP logotype
Power 100.00 W
Package Embedded
No. of outputs 1
Input voltage 90-264 VAC
Efficiency 0.00
Available output range (V) 0-200
Max output current 0.00
Electronic load input rating power 0.00
Dimensions 50.8x101.6x30mm
Water-cooled option No

Features:

  • Operation altitude up to 5000 meters
  • 2 x 4 inch foot print with 1.29 inch low profile
  • Less than 175 μA leakage current
  • Meet EN55032 class B emissions
  • Short -circuit protection
  • Compliant with RoHS requirements
  • No load power consumption l ess than 0. 15W

Description:

The PU101 series of compact, open PCB constructed, AC-DC switching power supplies are capable of delivering 100 watts of continuous power at 7.5 CFM forced air cooling or 80 watts at convection cooling. They operate at 80-264 VAC input voltage without the need of voltage selection. The units are certified to IEC/EN/UL/CSA 62368-1 and suitable for data networking, computer, telecommunication, audio/video and industrial applications.
