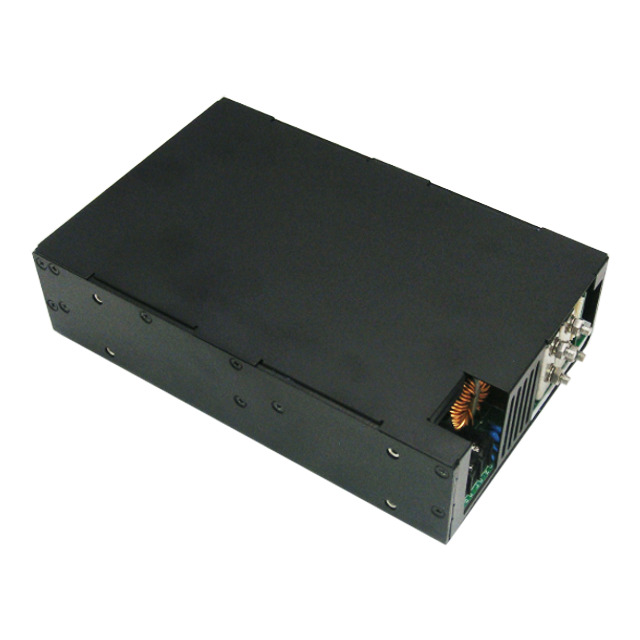

PU1100 series

Manufacturer
Power	1100.00 W
Package	Embedded
No. of outputs	1
Input voltage	90-264 VAC
Efficiency	89.00
Available output range (V)	0-1500
Max output current	0.00
Electronic load input rating power	0.00
Dimensions	150x235x60.1mm
Water-cooled option	No

Features:

Active PFC, power factor 0.98 typical
EN61000-3-2 class A and D compliant
Operation uo to 5000 meters
Compact size 5.91"x9.25"x2.4"
EN55032 Class B emissions
Inhibit - TTL low to disable output
Standard PS Off and DC OK signals
High Efficiency 89% typical
Compliant with RoHS requirements
Standby output 5 VDC at 200 mA
Variable speed internal fan
Overvoltage protection
Overcurrent protection
Thermal protection

Description:

The PU1100 series of AC-DC switching power supplies in a package of 5.91 x 9.25 x 2.4 inches are capable of delivering 1100 watts of continuous power. The units are constructed on a printed circuit board with an enclosure for mechanical support and heat sinking. They are designed for ITE, telecommunication, audio/video and industrial applications.
