PU651 Series

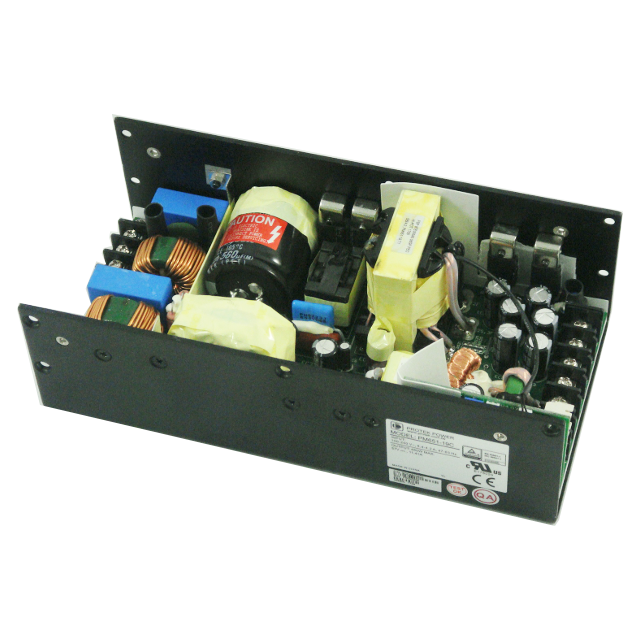

PU651 Series image
Manufacturer FSP logotype
Power 650.00 W
Package Embedded
No. of outputs 1
Input voltage 90-264 VAC
Efficiency 0.00
Available output range (V) 0-80
Max output current 0.00
Electronic load input rating power 0.00
Dimensions 101.6x203.2x65.6mm
Water-cooled option No

Features:

  • Operation up t o 5000 meters
  • 90-264 VAC input with active PFC
  • EN61000-3-2 class A and D compliant
  • Overvoltage prot ection
  • Thermal protection
  • Standby output 5VDC at 200mA
  • EN55032 Class B conducted emissions
  • Inhibit - TTL high to disable output
  • Compliant with RoHS requirements

Description:

The PU651 series of AC-DC switching power supplies in a package of 4 x 8 x 2.58 inches are capable of delivering 600-650 watts of continuous power at 30 CFM forced air cooling. The units are constructed on a printed circuit board with a U-bracket for mechanical support and heat sinking. A cover and fan assembly can be added during manufacturing. They are designed for ITE, telecommunication, audio/video and industrial applications.
