QM7F Medical

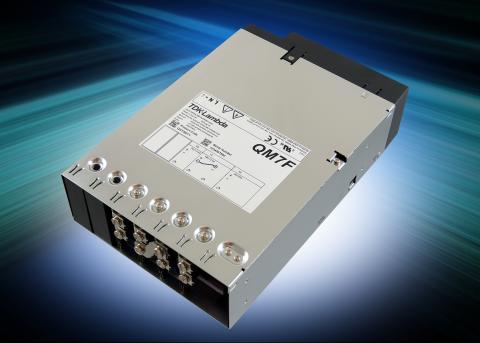

QM7F Medical image
Manufacturer TDK-Lambda logotype
Power 1200.00 W
Package Enclosed
No. of outputs 5
Notes 1500W @ 150-264Vac input, Reverse air option, Low leakage current option (150µA)
Application Medical
Input voltage 90-264Vac
Efficiency 0.00
Max output current 0.00
Electronic load input rating power 0.00
Warranty 7 years
Dimensions 270 x 176 x 63,3 mm
Water-cooled option No
Manual Link
Attachments Link

Features:

  • Full medical isolation (MoPP) eases design into systems (including BF)
  • Low speed, low audible noise fan allows enhanced patient / user experience
  • Up to 16 outputs eliminating the need for additional supplies
  • Industry leading flexibility suits your application
  • 7 Year warranty - low cost of ownership

Description:

The high efficiency modular QM range is available in system fan and low noise fan versions. The 2 models within the range are QM5 (available Q2/2017) which is rated at 1200W high line and 700W low line and QM7 rated at 1500W high line and 1200W low line. Combining 1 MOPP (1.5kVac) input to ground, 2 MOPP (4kVac) input to output and 1 MOPP (1.5kVac) output to ground isolation, the entire QM range is certified for both medical equipment (making it suitable for BF (body floating) type) and industrial. High efficiency levels of up to 91% are combined with a wide selection of modules to perfectly match your requirement.
