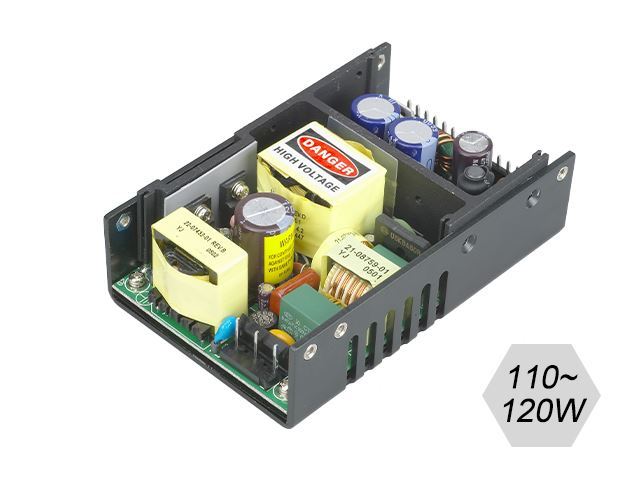

SUU120

Manufacturer
Power	120.00 W
Input voltage	90-260VAC
Efficiency	0.00
Max output current	0.00
Electronic load input rating power	0.00
Warranty	3 Years
Dimensions	127x81.6x30.2mm
Weight	0.582
Water-cooled option	No

Features:

Wide Operating Voltage, 90 to 260 VAC, 47 to 63 Hz
Internal EMI Filter
Active Power Factor Correction
Crowbar Mode Over Voltage Protection
Single Output
Class I System
3-Year Warranty

Description:

The SUU120 series of AC/DC switching mode power supplies provide 120 Watts of continuous output power. All models meet FCC Part-15 class B and CISPR-32 class B emission Limits and are designed to comply with UL/c-UL and CE marking conformity assessment. All units pass burn-in test at full load condition.

Download datasheet
