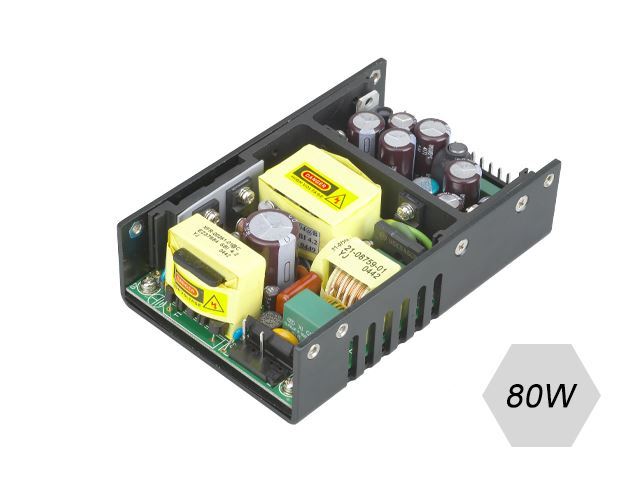

SUU81

Manufacturer
Power	80.00 W
Input voltage	90-260VAC
Efficiency	0.00
Max output current	0.00
Electronic load input rating power	0.00
Warranty	3 Years
Dimensions	127x81.6x36.6mm
Weight	0.480
Water-cooled option	No

Features:

Wide Operating Voltage 90 to 264 VAC,47 to 63 Hz
Internal EMI Filter
Crowbar Mode Over Voltage Protection
Dual and Triple Output
Active Power Factor Correction
Class I System
3-year Warranty

Description:

The SUU81 series of AC/DC switching mode power supplies provide 80 Watts of continuous output power. All models meet EN 55032, BS EN55032 class B and AS/NZS CISPR 32 class B emission limits and are designed to comply with cTUVus and CE marking conformity assessment. All units pass burn-in test at full load condition.

Download datasheet
