XMS500-D-N (Class II)

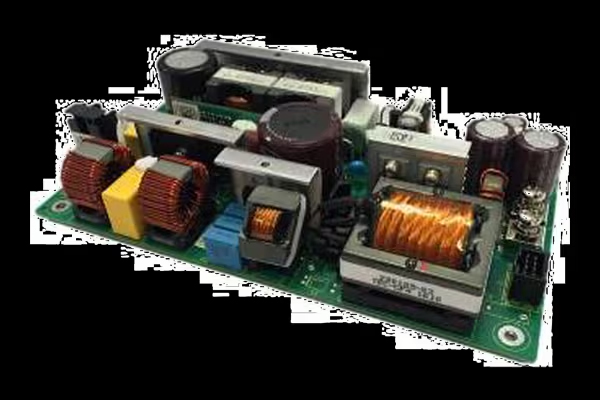

XMS500-D-N (Class II) image
Manufacturer TDK-Lambda logotype
Power 500.00 W
Package Open-frame
No. of outputs 1
Notes Configurable, 16ms Hold up
Input voltage 90-264Vac
Efficiency 0.00
Max output current 0.00
Electronic load input rating power 0.00
Warranty 5 years
Dimensions 180 x 102 x 37
Water-cooled option No

Features:

  • BF ready medical isolation (MOPP)
  • Class I / II with level B EMC
  • 1U profile
  • Low airflow requirement
  • 5 Year Warranty

Description:

The 500W, single output XMS500 is available in either class I or class II configurations. Both versions achieve class B EMC performance (both conducted and radiated) to EN55011 and EN55032. The whole range is certified for medical equipment with BF ready medical isolation (1 x MOPP input / ground, 2 x MOPP input / output and 1 x MOPP output / gnd). Other features include a selectable fan supply, various case options, remote on/off and dual or single fusing.
Download datasheet
