ADT-120A19AA

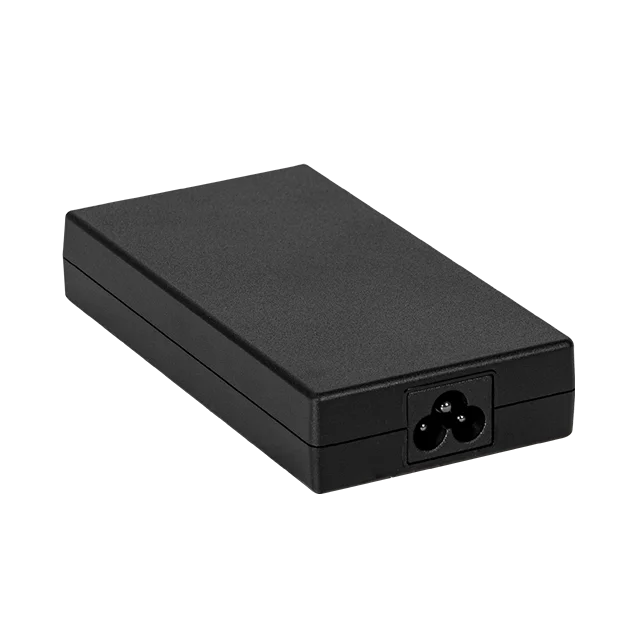

ADT-120A19AA image
Manufacturer Delta logotype
Power 120.00 W
Package Desktop
Input voltage 85-264VAC
Efficiency 0.00
Available output range (V) 19.5V
Max output current 0.00
Electronic load input rating power 0.00
Dimensions 138x68.5x24.5mm
Weight 0.34
Water-cooled option No

Features:

  • Meet DoE Level VI & CoC Tier 2
  • No load power consumption < 0.15 W
  • Universal AC input / Full range
  • Fully enclosed plastic case
  • Protection: short circuit / over voltage / overload/ over temperature

Description:

The ADT-120A19AA M-A external power supply comes with universal AC input at 90 Vac to 264 Vac. With the efficiency up to 91.5% and the extremely low no-load power consumption below 0.15 W, The ADT-120A19AA M-A is compliant with DoE level VI and CoC Tier 2. It conforms to major international safety standards according to IEC/EN/UL 62368-1 and IEC/EN 60950-1 approval for ITE including BSMI, CCC, PSE and KC. In addition, it also meet the EMI approvals to EN/BS EN 55032 Class B.
Download datasheet
