ADT-150B12AA

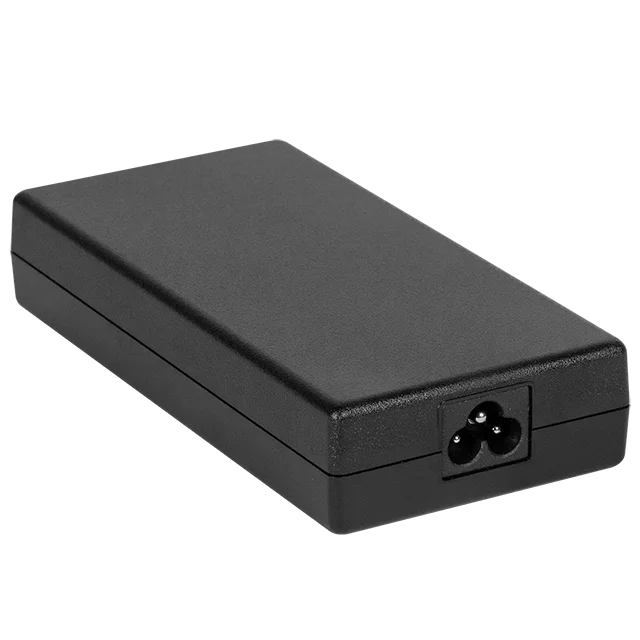

ADT-150B12AA image
Manufacturer Delta logotype
Power 150.00 W
Package Desktop
Input voltage 90-264VAC
Efficiency 0.00
Available output range (V) 12V
Max output current 0.00
Electronic load input rating power 0.00
Dimensions 155x76x30mm
Weight 0.54
Water-cooled option No

Features:

  • Meet efficiency DoE Level VI & CoC Tier 2
  • No load power consumption < 0.15 W
  • Universal AC input / Full range
  • Fully enclosed plastic case
  • Protection: short circuit / over voltage / overload/ over temperature

Description:

The ADT Series of AC-DC desktop adapter in compact size. ADT-150B12AA J-A meet the DoE Level VI and CoC Tier 2 energy efficiency requirements with levels up to 90% and the extremely low no-load power consumption below 0.15 W. The series conform to major international safety standards according to IEC/EN/UL 62368-1 and IEC/EN 60950-1 approval for ITE. In addition, they also meet the EMI approvals to EN/BS EN 55032 class B.
Download datasheet
