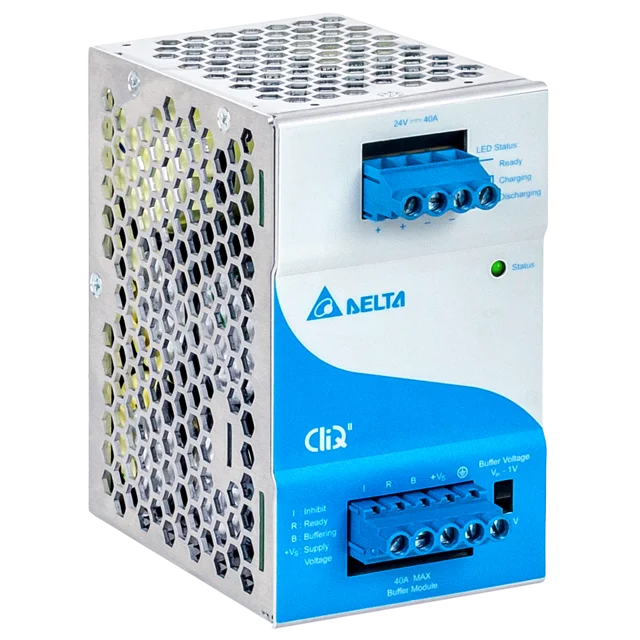

DRB-24V040ABN

Features:

• Minimum buffering time of 200 ms @ 24 V/40 A
• Flexible operating buffering voltage modes: - Fixed mode at 22 Vdc, - Dynamic mode for Vin -1 V
• Supports parallel connection to extend buffering time
• Conformal coating on PCBAs to protect against common dust and chemical pollutants

Description:

Delta’s CliQ II buffer module offers the most widely used output voltage of 24 V and a minimum buffering time of 200 ms at 40 A in wide input range from 22.8 Vdc to 28.8 Vdc. The buffer module utilizes maintenance-free electrolytic capacitors to store energy, thus eliminates the need of periodic replacement as compared to costlier batteries which also have shorter functional life span. The DRB-24V040ABN comes with comprehensive protection features like overvoltage, over current and short circuit protections. The rugged compact aluminium case is shock and vibration resistant according to IEC 60068-2 standard.
