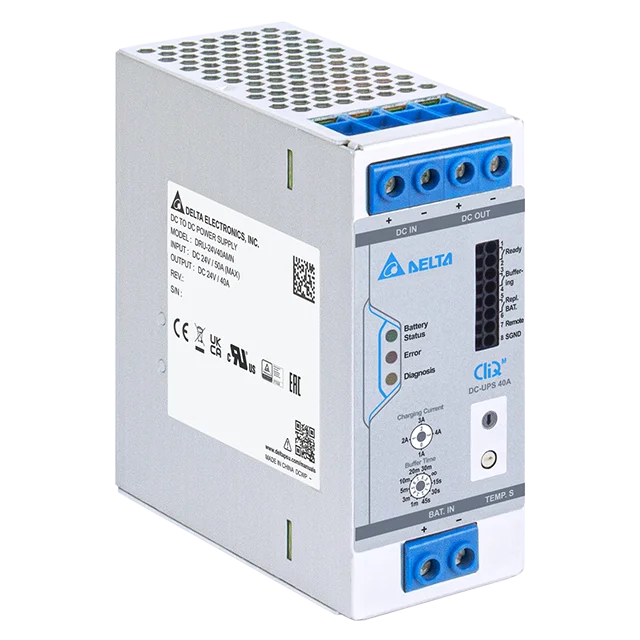

DRU-24V40AMN

Features:

• Full corrosion resistant aluminium casing
• Suitable for 24 V system
• Built-in diagnostic monitoring for Battery Ready, Buffering and Replace Battery by relay contacts
• LED indicator for Battery Ready, Battery Fail, DC Input, Battery Reverse Polarity and Battery Buffering
• Selectable Charging Current
• Selectable Buffering Time to prevent battery over discharge
• Battery temperature protection to extend battery life
• Conformal coating on PCBAs to protect against common dust and chemical pollutants

Description:

The CliQ M DC-UPS modules comprise of 24 V 10 A, 20 A and 40 A output models. They offer a 150% power boost function at both main operation mode and battery operation mode. The products offer a wide input voltage from 18-30 V and a wide operating temperature range from -40°C to +70°C. The DC-UPS modules come with potential free contacts for battery management signals and LED indicator for battery status. The battery temperature protection will stop charging/buffering the battery under low and high temperature conditions to extend battery life.
