EPU60A

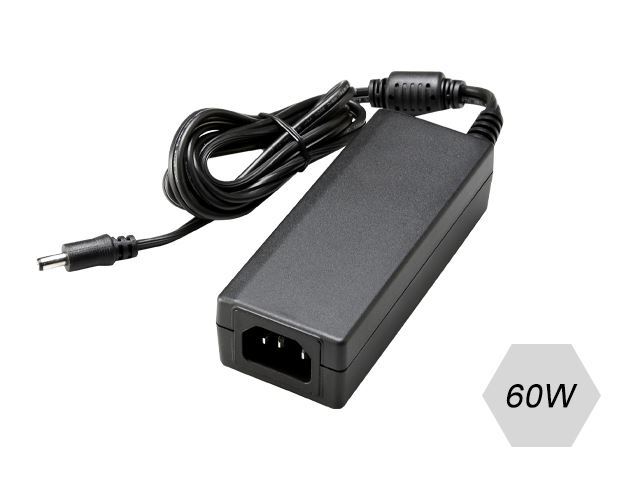

EPU60A image
Manufacturer Sinpro logotype
Power 60.00 W
Package Desktop
Input voltage 90-264VAC
Efficiency 0.00
Max output current 0.00
Electronic load input rating power 0.00
Warranty 1 Year
Dimensions 118x47x30.3mm
Weight 0.34
Water-cooled option No

Features:

  • Wide Operating Voltage 90 to 264 VAC,47 to 63 Hz
  • IEC-320-C14 Input Inlet
  • Optional Output Connector (See Page Appendix)
  • Single Output
  • Class I System
  • CoC v5 (Tier2)
  • 1-Year Warranty

Description:

The EPU60A series of AC/DC switching mode power supplies provide 60 Watts of continuous output power. All models meet FCC Part-15 class B and CISPR-32 class B emission Limits and are designed to comply with UL/c-UL, TUV/GS and CE marking conformity assessment. All units pass burn-in test at full load condition
Download datasheet
